HYDRAFORCE
5025044
$159.00 USD
- HYDRAFORCE
- Material:5025044
- Model:SV10-29-3B-N-24DR SOLENOID VALVE
- Summary:SOLENOID VALVE BIDIRECTIONAL, NORMALLY OPEN
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5025044 (5025044) is a solenoid operated, 2 port, normally open, bidirectional screw-in hydraulic cartridge valve. It is specifically designed to function as a load holding or blocking valve in various applications where low internal leakage is required in both directions. The valve features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage, enhancing its reliability and performance in demanding environments. It offers flexibility with optional coil voltages and terminations, allowing for easy integration into different systems. The cartridges are voltage interchangeable which provides additional adaptability for system modifications or upgrades without the need for complete valve replacement. A manual override option is available, providing an added layer of operational control. For environments requiring robust protection against dust and water ingress, optional waterproof E-Coils are available, which are rated up to IP69K. This model also uses an industry common cavity, making it compatible with standard configurations and simplifying installation processes.
The Hydraforce 5025044 (5025044) is a solenoid operated, 2 port, normally open, bidirectional screw-in hydraulic cartridge valve. It is specifically designed to function as a load holding or blocking valve in various applications where low internal leakage is required in both directions. The valve features a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage, enhancing its reliability and performance in demanding environments. It offers flexibility with optional coil voltages and terminations, allowing for easy integration into different systems. The cartridges are voltage interchangeable which provides additional adaptability for system modifications or upgrades without the need for complete valve replacement. A manual override option is available, providing an added layer of operational control. For environments requiring robust protection against dust and water ingress, optional waterproof E-Coils are available, which are rated up to IP69K. This model also uses an industry common cavity, making it compatible with standard configurations and simplifying installation processes.
Description The sv10-29xx is a solenoid operated, 2 port, normally open, bidirectional, screw-in hydraulic cartridge valve, designed to function as a load holding or blocking valve in applications requiring low internal leakage bidirectionally. Features Continuous-duty rated coil. Hardened seat for long life and low leakage. Optional coil voltages and terminations. Cartridges are voltage interchangeable. Manual override option. Optional waterproof E-Coils rated up to IP69K. Industry common cavity.
Materials:
steel with hardened work surfaces zinc-plated exposed

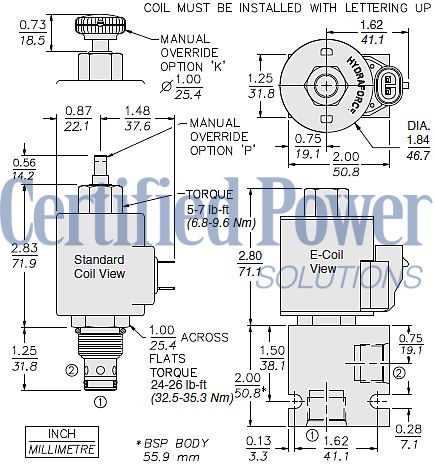

| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Minimum differential pressure required: 2.8 bar (40 psi) See graph Flow Ratings Maximum internal leakage: 5 drops/min Max at 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 120 °C (-40 to 250 °F) With buna N seals -30 to 205 °C (-20 to 400 °F) With fluorocarbon seals -50 to 80 °C (-60 to 175 °F) With polyurethane seals |
| Performance |  |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) |
| Order Code | POSITION CODE DESCRIPTION SV10-29EG-H-J-L E Manual Override E BLANK NONE E K Momentary Push Override, Knob E P Momentary Push Override, Button G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
