HYDRAFORCE
5022422V
$211.00 USD
- HYDRAFORCE
- Material:5022422V
- Model:SP10-58DM-0-V-24DG SOLENOID VALVE
- Summary:PROPORTIONAL SOLENOID VALVE 3 POSITION, 5 PORT, MOTOR SPOOL DRAIN
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

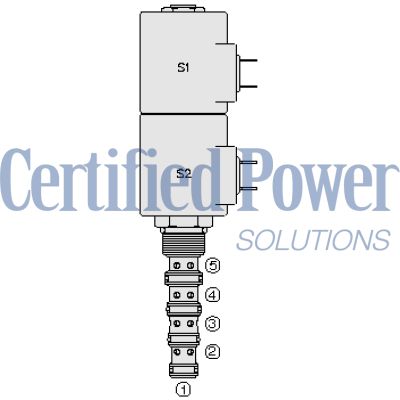

The Hydraforce 5022422V (5022422V) is a direct-acting, 3-position, 5-way proportional directional control valve, characterized by its advanced engineering and robust design tailored for versatile hydraulic fluid applications. This screw-in, cartridge-type valve integrates seamlessly into various hydraulic systems, enhancing performance through its continuous-duty rated solenoid. The precision-engineered spool and cage are hardened for increased durability and extended operational life. A notable feature of the Hydraforce 5022422V is its port 1 configuration as a load sense port, which facilitates efficient pressure detection and contributes to the overall energy efficiency of the system. The valve offers flexibility in customization with options for different coil voltages and terminations to suit specific system requirements. Additionally, it includes a manual override feature which provides an added layer of operational security and convenience. For environments demanding higher protection against ingress of dust and water, the optional waterproof E-Coils are available which are rated up to IP69K, ensuring reliable performance in harsh conditions. Furthermore, the interchangeable voltage cartridges enhance this model's adaptability across various electronic control systems. This combination of features makes the Hydraforce 502242V an optimal solution for controlling flow and direction in hydraulic circuits across a broad range of applications.
The Hydraforce 5022422V (5022422V) is a direct-acting, 3-position, 5-way proportional directional control valve, characterized by its advanced engineering and robust design tailored for versatile hydraulic fluid applications. This screw-in, cartridge-type valve integrates seamlessly into various hydraulic systems, enhancing performance through its continuous-duty rated solenoid. The precision-engineered spool and cage are hardened for increased durability and extended operational life. A notable feature of the Hydraforce 5022422V is its port 1 configuration as a load sense port, which facilitates efficient pressure detection and contributes to the overall energy efficiency of the system. The valve offers flexibility in customization with options for different coil voltages and terminations to suit specific system requirements. Additionally, it includes a manual override feature which provides an added layer of operational security and convenience. For environments demanding higher protection against ingress of dust and water, the optional waterproof E-Coils are available which are rated up to IP69K, ensuring reliable performance in harsh conditions. Furthermore, the interchangeable voltage cartridges enhance this model's adaptability across various electronic control systems. This combination of features makes the Hydraforce 502242V an optimal solution for controlling flow and direction in hydraulic circuits across a broad range of applications.
Unit weight:
0.29 kg (0.64 lb)
SP10-58D
0.33 kg (0.73 lb)
SP10-58DM
Internal wetted surface area:
271 cm² (42 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 655 bar (9500 psi) Flow Ratings Flow rating: 22.7 lpm (6.0 gpm) SP10-58D 18.9 lpm (5.0 gpm) SP10-58DM Maximum internal leakage: 20 in³/min SP10-58D max at 207 bar (3000 psi) 15 in³/min SP10-58DM max at 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 10 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Electrical Parameters | Maximum operating current:

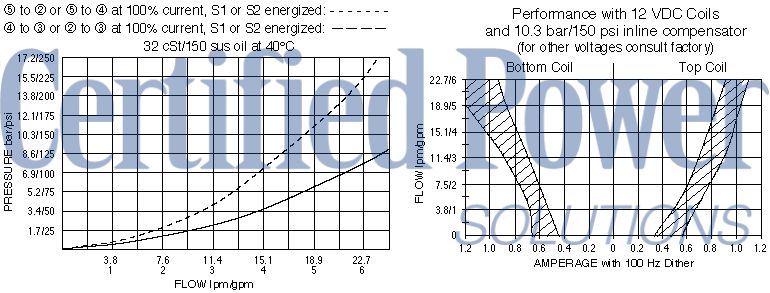

See chart |

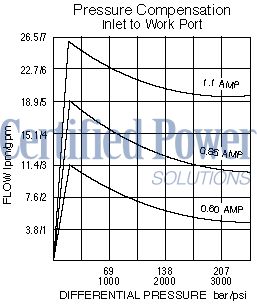

| Performance |   |

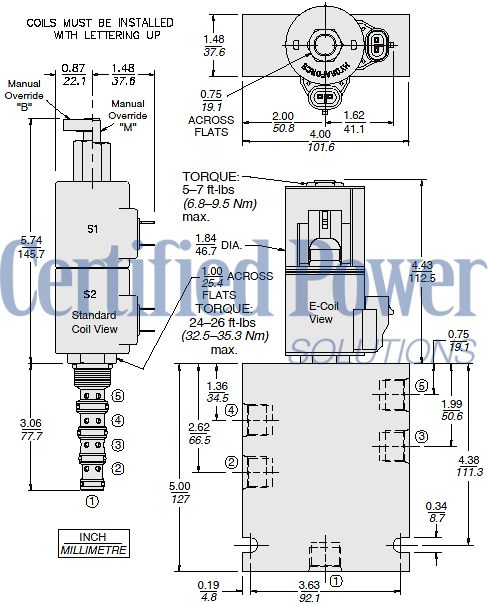

| Installation Specifications | Cavity:
VC10-5 10-size-5-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Maximum allowable torque: 61 N-m (45 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP10-58DE-H-J-L E Manual Override E B Momentary Push/Pull Override, 1.5" Diameter Aluminum Knob E BLANK NONE E K Three Position Override, 1.5" Diameter Aluminum Knob E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-5X-MMMM
X - seal option
Seal kit installation instructions
Housings:
Available
10-5w valve bodies
Coils:
10 size D
coils
10 size E
coils
