- Material:5022222
- Model:SP10-47DM-6T-N-24EG SOLENOID VALVE
- Summary:SOLENOID PROPORTIONAL VALVE 3 POSITION, 4 PORT MOTOR CENTER
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

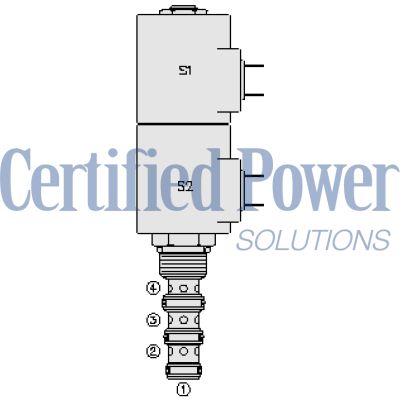

The Hydraforce 5022222 (5022222) is a high-performance solenoid operated, direct acting, 3 position, 4-way, motor spool, proportional directional control valve. This screw-in hydraulic cartridge valve is designed for use with general-purpose hydraulic fluids and features a robust construction that ensures long-lasting reliability and performance. The valve offers precise control with its hardened precision spool and cage, enhancing the overall efficiency and durability of the system. Operationally, the SP1047DX configuration of the valve provides versatile flow directions depending on the energization of the coils. In its de-energized state, it blocks flow to port 3 while allowing flow from port 2 to port 1 and from port 4 to port 1. Energizing coil 1 changes the flow direction from port 3 to port 4, and maintains flow from port 2 to port 1. Similarly, when coil 2 is energized, it redirects flow from port 3 to port 2 and from port 4 to port 1. Among its notable features are continuous-duty rated solenoids that ensure operational reliability under continuous use. The optional manual override feature provides additional operational flexibility. For environments requiring robust performance against elements, optional waterproof E-Coils are available which are rated up to IP69K standards. Additionally, this model offers good linearity and hysteresis characteristics which contribute to precise control in various applications. The Hydraforce 5022222 fits an industry-common cavity which makes it interchangeable with other similar valves in the market without requiring modifications to existing systems. This feature combined with its voltage interchangeable cartridges makes it highly adaptable for various hydraulic system requirements.
The Hydraforce 5022222 (5022222) is a high-performance solenoid operated, direct acting, 3 position, 4-way, motor spool, proportional directional control valve. This screw-in hydraulic cartridge valve is designed for use with general-purpose hydraulic fluids and features a robust construction that ensures long-lasting reliability and performance. The valve offers precise control with its hardened precision spool and cage, enhancing the overall efficiency and durability of the system. Operationally, the SP1047DX configuration of the valve provides versatile flow directions depending on the energization of the coils. In its de-energized state, it blocks flow to port 3 while allowing flow from port 2 to port 1 and from port 4 to port 1. Energizing coil 1 changes the flow direction from port 3 to port 4, and maintains flow from port 2 to port 1. Similarly, when coil 2 is energized, it redirects flow from port 3 to port 2 and from port 4 to port 1. Among its notable features are continuous-duty rated solenoids that ensure operational reliability under continuous use. The optional manual override feature provides additional operational flexibility. For environments requiring robust performance against elements, optional waterproof E-Coils are available which are rated up to IP69K standards. Additionally, this model offers good linearity and hysteresis characteristics which contribute to precise control in various applications. The Hydraforce 5022222 fits an industry-common cavity which makes it interchangeable with other similar valves in the market without requiring modifications to existing systems. This feature combined with its voltage interchangeable cartridges makes it highly adaptable for various hydraulic system requirements.
Unit weight:
0.27 kg (0.60 lb)
SP10-47D
Internal wetted surface area:
233 cm² (36.1 in²)
SP10-47D
Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: 22.7 lpm (6.0 gpm) 20.8 lpm (5.5 gpm) Manual override options "b" and "m" Maximum internal leakage: 246 ml/min (15 in³/min) From port 3 to 4 or port 3 to 2 with the valve in neutral at 207 bar (3000 psi) Hysteresis per cent: 10 % Maximum, flow rating between lpm (1.0 to 5.5 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
Electrical Parameters | Valve inductance:
198 mH At 1.2 A Maximum control current: 1.2 A For coil 12 V Threshold current: 0.40 A (S1) nominal for coil 12 V 0.42 A (S2) nominal for coil 12 V Dither PWM frequency: 100 Hz |
Performance | |
Installation Specifications | Cavity:
VC10-4 10-size-4-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
Order Code | POSITION CODE DESCRIPTION SP10-47DE-H-J-L E Manual Override E B Momentary Push/Pull Override, 1.5" Diameter Aluminum Knob E BLANK NONE E K Three Position Override, 1.5" Diameter Aluminum Knob E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-4X-MMM
X = seal option
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
Coils:
10 size D
coils
10 size E
coils
Product ZIP File | Download Product ZIP File |
Product PDF File | Download Product PDF File |
