HYDRAFORCE
5020562
$291.00 USD
- HYDRAFORCE
- Material:5020562
- Model:SV10-P25M-0-N-0-M3 SOLENOID VALVE

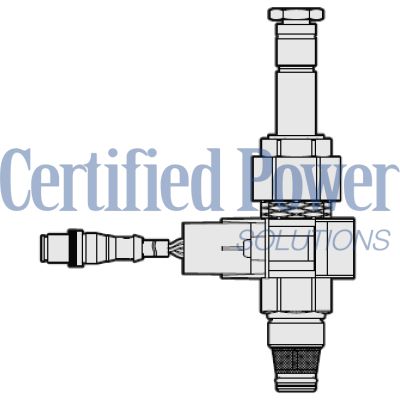

- Summary:SOLENOID CARTRIDGE VALVE POPPET, 2 PORT, NORMALLY OPEN WITH INTEGRAL POSITION SENSOR
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5020562 (5020562) is a high-performance, solenoid-operated hydraulic cartridge valve that offers versatile control in hydraulic systems. This model is a 2-way, normally open, direct-acting, spool-type valve designed to function as a bidirectional blocking valve. The operation of the SV10P25 model is straightforward: when de-energized, it allows fluid flow in both directions; however, upon energization, the cartridge's spool shifts to block the bidirectional flow path efficiently. This valve is particularly notable for its integral position sensor which provides real-time feedback on the valve's status, indicating whether it has shifted positions. This feature enhances the precision and reliability of hydraulic operations in various applications. The unit boasts a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage, enhancing system reliability and performance longevity. Additional features of the Hydraforce 5020562 include optional coil voltages and terminations to accommodate different electrical requirements and installation scenarios. Its efficient wet-armature construction contributes to its robust performance even under challenging conditions. Moreover, this model's cartridges are voltage interchangeable which adds a layer of flexibility for system integration. For durability in harsh environments, the valve features waterproof E-Coils rated up to IP69K standards and a unitized, molded coil design. It also has solenoid tubes and coils that have been tested for up to 960 hours in salt spray conditions, ensuring resistance against corrosion. These characteristics make the Hydraforce 5020562 an ideal choice for applications requiring reliable hydraulic flow control with enhanced durability and adaptability.
The Hydraforce 5020562 (5020562) is a high-performance, solenoid-operated hydraulic cartridge valve that offers versatile control in hydraulic systems. This model is a 2-way, normally open, direct-acting, spool-type valve designed to function as a bidirectional blocking valve. The operation of the SV10P25 model is straightforward: when de-energized, it allows fluid flow in both directions; however, upon energization, the cartridge's spool shifts to block the bidirectional flow path efficiently. This valve is particularly notable for its integral position sensor which provides real-time feedback on the valve's status, indicating whether it has shifted positions. This feature enhances the precision and reliability of hydraulic operations in various applications. The unit boasts a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage, enhancing system reliability and performance longevity. Additional features of the Hydraforce 5020562 include optional coil voltages and terminations to accommodate different electrical requirements and installation scenarios. Its efficient wet-armature construction contributes to its robust performance even under challenging conditions. Moreover, this model's cartridges are voltage interchangeable which adds a layer of flexibility for system integration. For durability in harsh environments, the valve features waterproof E-Coils rated up to IP69K standards and a unitized, molded coil design. It also has solenoid tubes and coils that have been tested for up to 960 hours in salt spray conditions, ensuring resistance against corrosion. These characteristics make the Hydraforce 5020562 an ideal choice for applications requiring reliable hydraulic flow control with enhanced durability and adaptability.
Unit weight:
0.49 kg (1.08 lb)
With M12 connector
Internal wetted surface area:
218 cm² (33.8 in²)

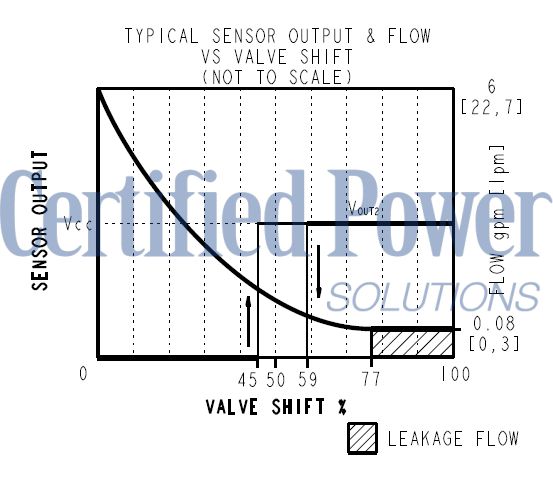

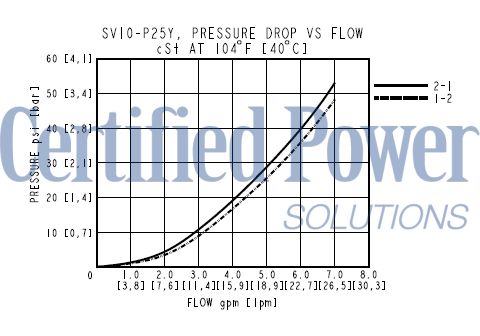

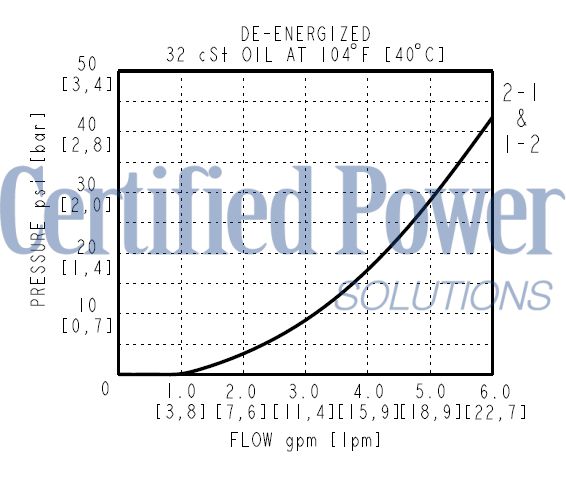

| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: 22.7 lpm (6 gpm) See performance graph Maximum internal leakage: 82 ml/min (5 in³/min) Max at 207 bar (3000 psi) 0.3 lpm (0.08 gpm) Typical flow (leakage) in transition at 207 bar (3000 psi). (see "Flow vs % Valve Shift" graph for flow in transition from valve close to valve open). Other Ratings Response: 72 ms Pull-in. Response times measured per NFPA/T3.5.30-2008 *Inlet pressure at port 2 is 207 bar (3000 psi) *Valve oriented vertically and purged of air 32 ms Drop-out. Response times measured per NFPA/T3.5.30-2008 *Inlet pressure at port 2 is 207 bar (3000 psi) *Valve oriented vertically and purged of air Minimum pull-in voltage: 10.2 Vdc 12 Vdc coil Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals *See Position sensor operating temperature* -54 to 107 °C (-65 to 225 °F) With urethane seals *See Position sensor operating temperature* Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Position sensor operating temperature: -40 to 110 °C (-40 to 230 °F) Sensor element operating temperature limits the operating temperature of the entire assembly |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |    |
| Installation Specifications | Cavity:

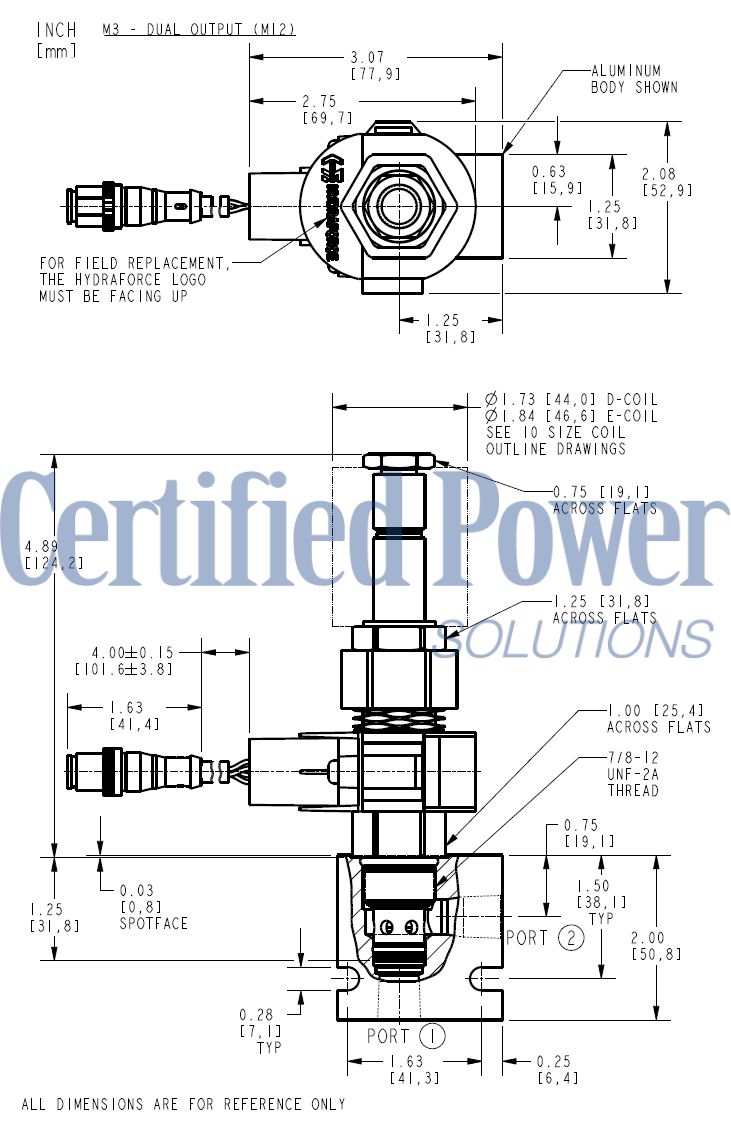

VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.6 to 35.4 N-m (24 to 26 ft-lb) Coil nut torque: 5.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |

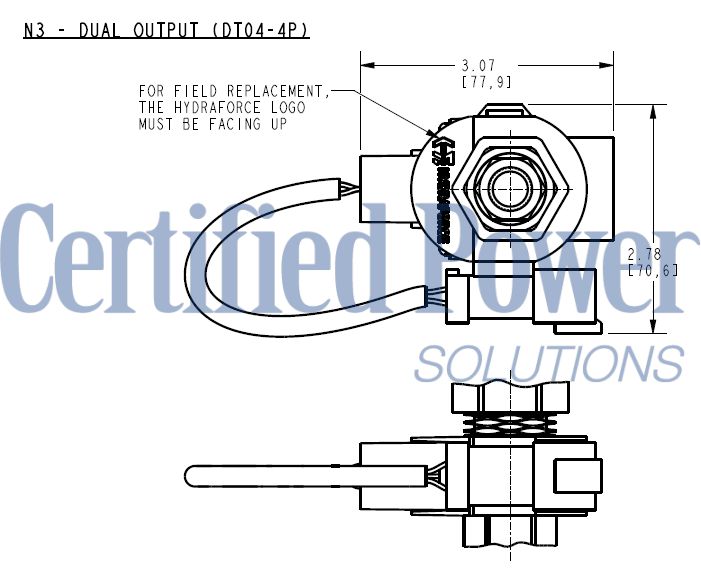

| Order Code | POSITION CODE DESCRIPTION SV10-P25EG-H-J-L-M E Manual Override E BLANK NONE E M Two Position Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO |
| Position Sensor Specifications | Electrical Parameters Supply voltage: 9 to 32 Vdc Vcc Output voltage with target present: Vcc Output clamp current: 40 to 65 mA For Vcc up to 32 Vdc Ratings ESD: ±8 kV Air discharge EMI: 30 V/m From 400 MHz to 2 GHz IP rating: IP67 Vibration: 10 G 10 to 2000 Hz sinosudial Mechanical shock: 50 G 11 ms, half-wave sinosudial Position sensor operating temperature: -40 to 110 °C (-40 to 230 °F) Sensor element operating temperature limits the operating temperature of the entire assembly Properties Connector: Deutsch DT04-4P Option N3 (dual output) M12 Option M3 (dual output) |
| Wiring Diagrams |   |
Seal kit:
SK10-2X-M
X = Seal option
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size E
coils
10 size D
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
