HYDRAFORCE
5019191

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

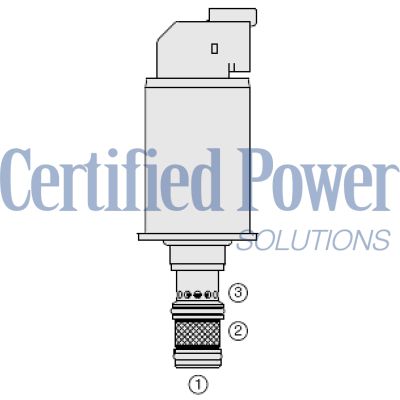

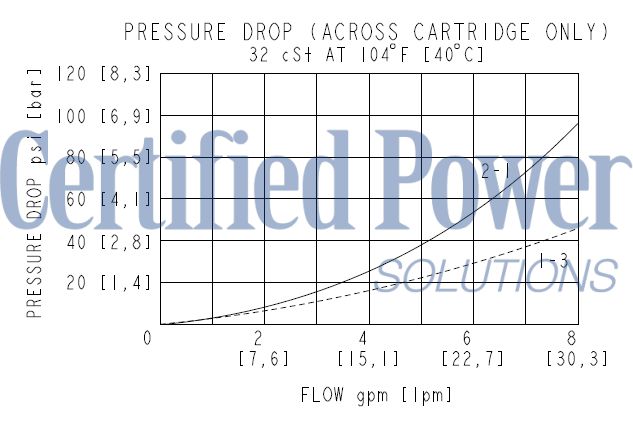

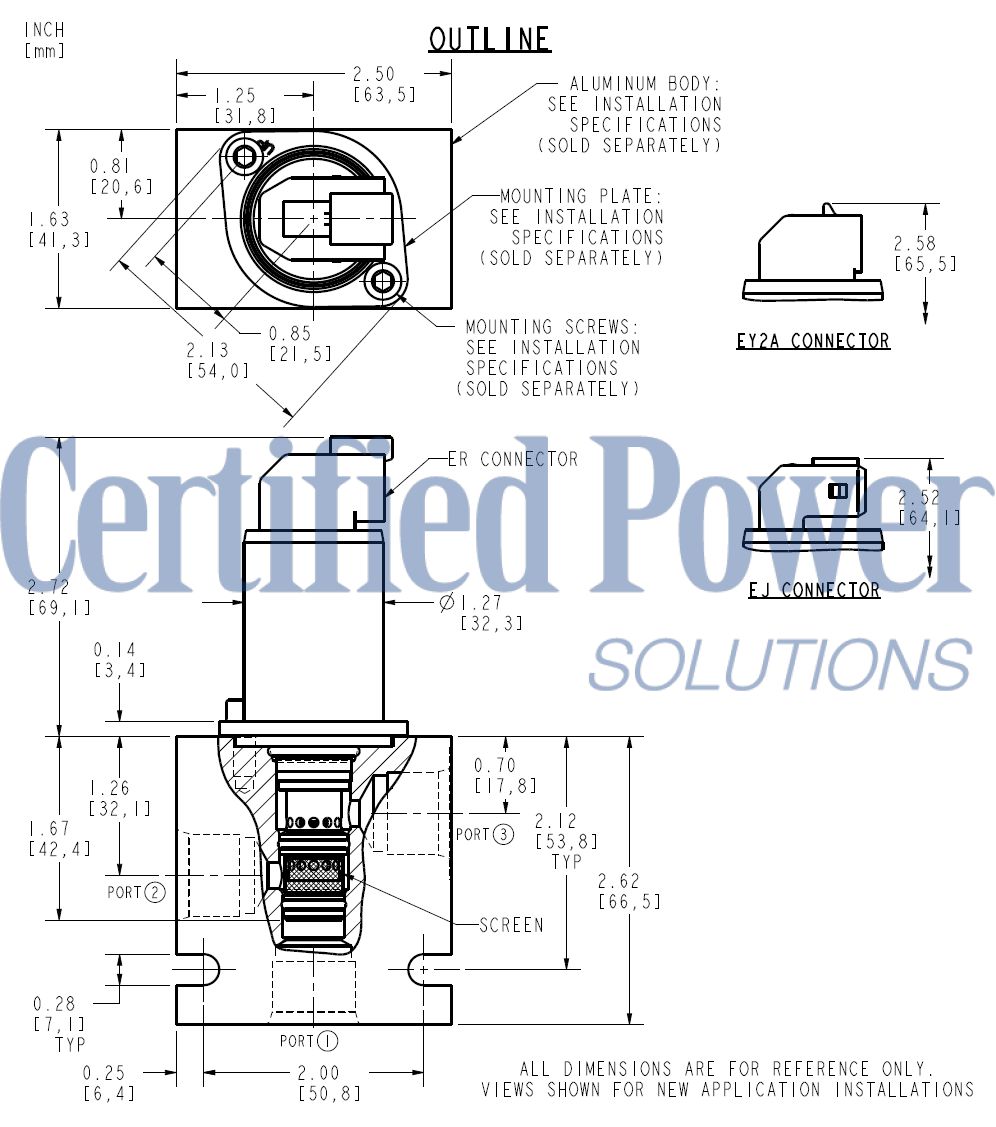

The Hydraforce 5019191 (5019191) is a meticulously designed SV98G38X model, a direct-acting, spool-type, 2-position, 3-way directional control valve. This robust valve is engineered as a drop-in, flange-mounted cartridge type specifically for use with general-purpose hydraulic fluids. The integral coil within the valve is not serviceable, ensuring a compact and durable design. In its operational dynamics, the SV98G38X exhibits versatile flow directions; when de-energized, it allows flow from port 1 to port 3 while blocking port 2. Upon energization, the spool shifts to facilitate flow from port 2 to port 1 and concurrently blocks port 3. Characterized by bidirectional operation and reduced leakage, this valve offers an economical solution with its drop-in style that simplifies installation processes. It features a low pressure drop and fast response time enhancing operational efficiency. Durability is heightened through corrosion-resistant plating and an inlet port screen option that augments resistance to contamination. This model stands out for its higher flow capacity at lower temperatures and includes an integral waterproof coil as standard—verified through rigorous testing detailed in its documentation. Further enhancing its adaptability are several push-on termination options for the top-mounted coil and a round flange with optional mounting plates which broaden orientation possibilities. Retrofit mounting options are also available for varied application needs. The coil operates effectively within a voltage range of 10 to 28 VDC, making it suitable for diverse hydraulic applications where precise fluid control is essential.
