HYDRAFORCE
5009706

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

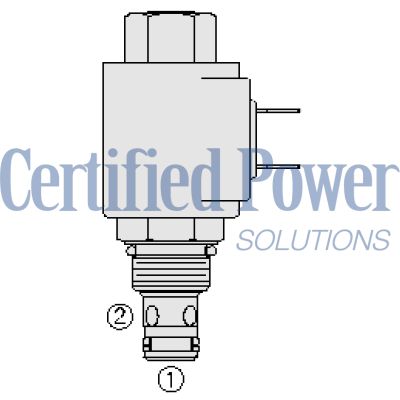

The Hydraforce SF08-23-0-P-00 (5009706) is a solenoid-operated, 2-way, normally open, poppet-type hydraulic cartridge valve. This screw-in cartridge valve is designed primarily to function as a load holding or blocking valve in systems that demand low internal leakage at high pressures. It features a unique operation where the poppet lifts to open from port 2 to port 1 when de-energized, allowing flow also from port 1 to port 2. Upon energization, it acts as a check valve, effectively blocking flow from port 2 to port 1 after overcoming the solenoid force which requires between 50 to 150 psi (3.4 to 10.3 bar). This model is built for continuous-duty with a rated coil and comes with hardened seats for extended life and minimal leakage. It offers optional coil voltages and terminations, and its cartridges are voltage interchangeable which enhances its adaptability for various applications. The unitized, molded coil design along with manual override options and optional waterproof E-Coils rated up to IP69K make it versatile for different environmental conditions. Additionally, it features corrosion-resistant plating ensuring durability against harsh conditions. The SF08-23-0-P-00 can handle a pressure rating up to 350 bar (5000 psi), with maximum internal leakage of only three drops per minute at this maximum pressure level. Its operating fluid temperature ranges from -40°C to +100°C (-40°F to +212°F) using Buna N seals, which can be extended using other seal materials such as Viton or Polyurethane for higher temperature operations. This model's compact size and industry-standard configuration ensure it can be easily integrated into various hydraulic systems without requiring extensive modifications while maintaining reliability and performance stability under high-pressure operations.
