HYDRAFORCE
5009392
$104.75 USD
- HYDRAFORCE
- Material:5009392
- Model:SV08-20MS-6T-N-00 SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE POPPET, 2 WAY, NORMALLY CLOSED
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

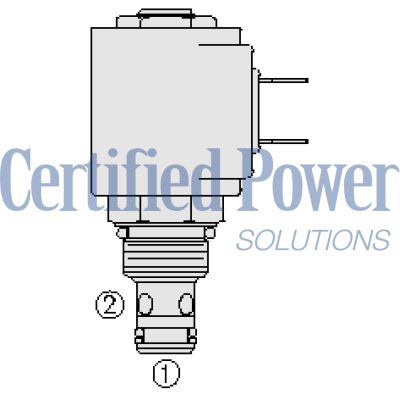

The Hydraforce SV08-20MS-6T-N-00 (5009392) is a high-performance, solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve. This valve is specifically designed for use as a blocking or load-holding device in low-flow hydraulic circuits. It features pull-only manual override options suitable for handles or cable linkage applications. In its default state when de-energized, the valve functions as a check valve allowing fluid flow from port 1 to port 2 while blocking the opposite direction. Upon energization, the valve’s poppet lifts to permit flow from port 2 to port 1, with restricted flow in the reverse direction. The SV08-20MS-6T-N-00 is built for durability and performance with a hardened seat that ensures long life and minimal leakage. It offers optional coil voltages and terminations, making it versatile for different electrical systems. The unitized, molded coil design enhances reliability while its compact size allows for easy integration into various system layouts without requiring extensive space. This model boasts impressive pressure ratings with a maximum operating pressure of 207 bar (3000 psi), proof pressure of up to 241 bar (3500 psi), and burst pressures reaching up to 620 bar (9000 psi). It supports a wide range of operating temperatures from -40°C to +100°C with standard seals, ensuring functionality under diverse environmental conditions. Additionally, this model is compatible with mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt. For installation convenience, the SV08-20MS-6T-N-00 uses an industry common cavity VC082 and requires specific installation torques ensuring secure and proper fitting into system assemblies. Accessories like seal kits and various housing options are available to enhance functionality and adaptability in different applications.
The Hydraforce SV08-20MS-6T-N-00 (5009392) is a high-performance, solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve. This valve is specifically designed for use as a blocking or load-holding device in low-flow hydraulic circuits. It features pull-only manual override options suitable for handles or cable linkage applications. In its default state when de-energized, the valve functions as a check valve allowing fluid flow from port 1 to port 2 while blocking the opposite direction. Upon energization, the valve’s poppet lifts to permit flow from port 2 to port 1, with restricted flow in the reverse direction. The SV08-20MS-6T-N-00 is built for durability and performance with a hardened seat that ensures long life and minimal leakage. It offers optional coil voltages and terminations, making it versatile for different electrical systems. The unitized, molded coil design enhances reliability while its compact size allows for easy integration into various system layouts without requiring extensive space. This model boasts impressive pressure ratings with a maximum operating pressure of 207 bar (3000 psi), proof pressure of up to 241 bar (3500 psi), and burst pressures reaching up to 620 bar (9000 psi). It supports a wide range of operating temperatures from -40°C to +100°C with standard seals, ensuring functionality under diverse environmental conditions. Additionally, this model is compatible with mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt. For installation convenience, the SV08-20MS-6T-N-00 uses an industry common cavity VC082 and requires specific installation torques ensuring secure and proper fitting into system assemblies. Accessories like seal kits and various housing options are available to enhance functionality and adaptability in different applications.
Unit weight:
0.10 kg (0.22 lb)
SV08-20
0.15 kg (0.33 lb)
SV08-20J/Y/M
Internal wetted surface area:
83 cm² (12.8 in²)
(SV08-20)
86.1 cm² (13.3 in²)
(SV08-20J/Y/M)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 241 bar (3500 psi) SV08-20 234.5 bar (3400 psi) Manual override Burst pressure: 620 bar (9000 psi) SV08-20 862 bar (12500 psi) Manual override Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min SV08-20/M at 207 bar (3000 psi) 5 drops/min SV08-20 J/Y at 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (GSV08-20XX) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 54 N-m (40 ft-lb) In aluminum Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV08-20EG-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK08-2X-T
= N, V and P seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
08 size D
coils
08 size E
coils
