HYDRAFORCE
5007952

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

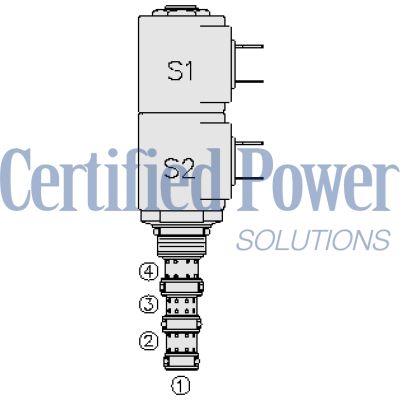

The Hydraforce 5007952 (5007952) is a solenoid-operated, 4-port, 3-position, direct-acting spool type screw-in hydraulic cartridge valve. This device is designed to control the direction of hydraulic fluid in a system efficiently. In its default state when de-energized, the SV0847AX model blocks cylinder ports while allowing flow from port 3 to port 1. Energizing coil 1 changes the flow path so that fluid can move from port 3 to port 2 and from port 4 to port 1. When coil 2 is energized, it directs the flow from port 3 to port 4 and from port 2 to port 1. This functionality makes it particularly useful in applications where work port flows are unequal due to cylinder ratios, with higher return flows directed ideally to port 2 for optimal performance. This valve features a continuous-duty rated solenoid and boasts a hardened precision spool and cage which enhance its durability for prolonged life under rigorous conditions. The unit offers optional coil voltages and terminations according to specific needs along with a manual override option for improved operational flexibility. For environments requiring robust resistance against water ingress, there are optional waterproof E-Coils available that are rated up to IP69K. The efficient wet-armature construction of Hydraforce's model ensures reliable performance while all ports on the valve can withstand full pressurization without risk of damage or failure. Additionally, its cartridges are voltage interchangeable which allows for easier maintenance and replacement processes. The compact size coupled with a unitized, molded coil design conforms to industry-common cavity specifications making this valve an adaptable solution suitable for a variety of hydraulic applications requiring precise control over fluid direction and flow.
