HYDRAFORCE
5007235
$82.00 USD
- HYDRAFORCE
- Material:5007235
- Model:SV08-42-0-N-24DG W/ 7004406 NUT
- Summary:SOLENOID CARTRIDGE VALVE SPOOL, 4 PORT, 2 POSITION
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

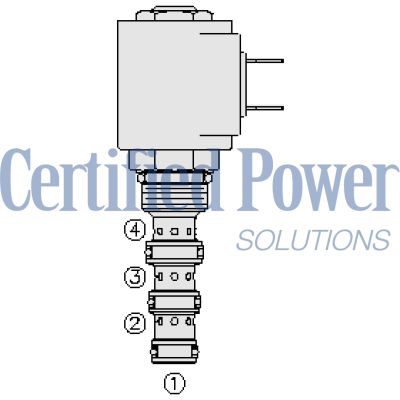

The Hydraforce 5007235 (5007235) is a high-performance hydraulic cartridge valve designed for precise control in fluid power applications. This solenoid-operated, 4-port, 2-position, direct-acting spool type valve is engineered to perform efficiently in various configurations. Its operation is straightforward: when de-energized, it allows flow from port 3 to port 4 and from port 2 to port 1. Upon energization, the valve's spool shifts to block all ports, effectively controlling the flow of hydraulic fluids. The Hydraforce 5007235 boasts a continuous-duty rated coil and features a hardened precision spool and cage that enhance its durability and lifespan, even under rigorous conditions. It is designed with efficient wet-armature construction and its cartridges are voltage interchangeable which provides flexibility for system integration. The unitized, molded coil design contributes to its robustness and reliability. Further enhancing its versatility are optional coil voltages and terminations that allow customization according to specific application needs. For environments requiring higher protection against ingress of dust and water, there is an optional waterproof E-Coils feature rated up to IP69K. Additionally, the compact size of this valve ensures it can be integrated into systems where space is at a premium without sacrificing performance. With manual override options available, the Hydraforce 5007235 provides operational control and safety in emergency situations. All ports on this valve may be fully pressurized, highlighting its capability to handle high-pressure applications efficiently. This makes it an ideal choice for a wide range of hydraulic system applications demanding reliable performance and adaptability.
The Hydraforce 5007235 (5007235) is a high-performance hydraulic cartridge valve designed for precise control in fluid power applications. This solenoid-operated, 4-port, 2-position, direct-acting spool type valve is engineered to perform efficiently in various configurations. Its operation is straightforward: when de-energized, it allows flow from port 3 to port 4 and from port 2 to port 1. Upon energization, the valve's spool shifts to block all ports, effectively controlling the flow of hydraulic fluids. The Hydraforce 5007235 boasts a continuous-duty rated coil and features a hardened precision spool and cage that enhance its durability and lifespan, even under rigorous conditions. It is designed with efficient wet-armature construction and its cartridges are voltage interchangeable which provides flexibility for system integration. The unitized, molded coil design contributes to its robustness and reliability. Further enhancing its versatility are optional coil voltages and terminations that allow customization according to specific application needs. For environments requiring higher protection against ingress of dust and water, there is an optional waterproof E-Coils feature rated up to IP69K. Additionally, the compact size of this valve ensures it can be integrated into systems where space is at a premium without sacrificing performance. With manual override options available, the Hydraforce 5007235 provides operational control and safety in emergency situations. All ports on this valve may be fully pressurized, highlighting its capability to handle high-pressure applications efficiently. This makes it an ideal choice for a wide range of hydraulic system applications demanding reliable performance and adaptability.
Unit weight:
0.13 kg (0.28 lb)
Internal wetted surface area:
12258.0 mm² (19.0 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 241 bar (3500 psi) SV08-42 n/a for SV08-42M Burst pressure: 620 bar (9000 psi) SV08-42 n/a for SV08-42M Flow Ratings Flow rating: 11.4 lpm (3 gpm) Maximum internal leakage: 5 in³/min At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °C) With buna N seals -26 to 204 °C (-15 to 400 °C) With viton seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:

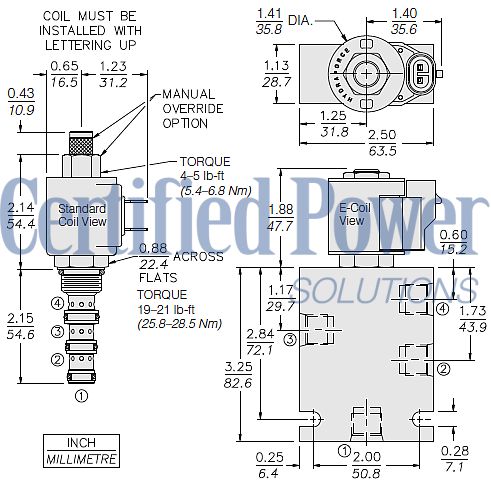

VC08-4 08-size-4-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV08-42E-H-J-L E Manual Override E BLANK NONE E M Two Position Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK08-4X-MMM
X = seal option
Seal kit installation instructions
Housings:
Available
08-4w valve bodies
Coils:
08 size D
coils
08 size E
coils
