HYDRAFORCE
5007049

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

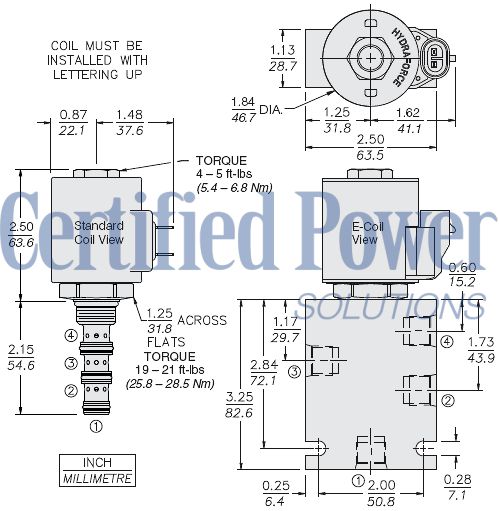

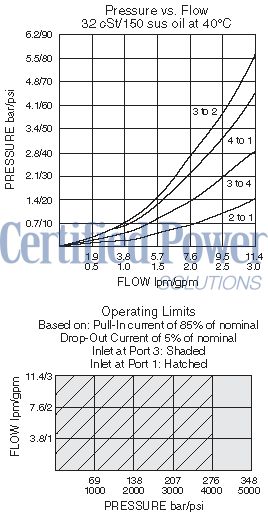

The Hydraforce SV58-40-0-P-24DG (5007049) is a solenoid-operated, direct acting, spool type hydraulic directional valve designed for high-pressure applications. This 4-port screw-in valve offers precise control over hydraulic flow paths; when deenergized, it connects port 3 to port 2 and port 4 to port 1. Upon energization, the spool shifts to connect port 3 to port 4 and port 2 to port 1, with all ports open at crossover. The SV58-40-0-P-24DG features a continuous-duty rated coil and a hardened precision spool and cage that ensure durability and long service life. This compact unit includes optional coil voltages and terminations to suit various installation requirements. Its efficient wet-armature construction minimizes energy loss, while the interchangeable voltage cartridges enhance versatility. An optional waterproof E-Coil, rated up to IP69K, ensures reliable operation in harsh environments. The valve's unitized, molded coil design contributes to its robustness and ease of maintenance. For specific performance metrics like flow rate and internal leakage at high pressures (up to 5000 psi), users should refer to the provided performance charts. Operating temperatures range from -40°C to +100°C with standard Buna N seals, but can vary with other seal types like Viton or polyurethane which support broader temperature ranges. Installation specifications include a VC084 cavity requirement and recommended torque settings for cartridge installation and coil nut tightening. Accessories such as seal kits with installation instructions, multiple housing options (084w valve bodies), and coils (sizes D10 and E10) are available for customization according to system needs.
