HYDRAFORCE
5007022
$71.25 USD
- HYDRAFORCE
- Material:5007022
- Model:SV08-40-0-N-12DR SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE SPOOL, 4 PORT, 2 POSITION
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

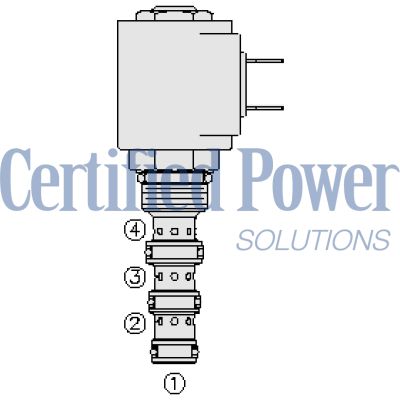

The Hydraforce 5007022 (5007022) is a solenoid-operated, 4-way, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. This valve operates by shifting its spool when energized; specifically, it opens flow paths from port 3 to port 4 and from port 2 to port 1. When de-energized, the flow paths revert to port 3 to port 2 and port 4 to port 1, with all ports being open at crossover. This functionality allows for versatile use in various hydraulic applications requiring precise control over fluid direction and flow. The valve features a continuous-duty rated coil that ensures reliability and performance during prolonged operational periods. Its construction includes a hardened precision spool and cage which enhance its durability and lifespan even under rigorous conditions. Additionally, the Hydraforce 5007022 offers optional coil voltages and terminations to accommodate different system requirements and installation environments. Further enhancing its utility are features like efficient wet-armature construction, interchangeable voltage cartridges, and the ability to fully pressurize all ports. The unitized, molded coil design contributes to its compact size while also providing robustness. For environments requiring high levels of protection against water ingress, there is an option for waterproof E-Coils rated up to IP69K. Optional manual override provides added operational flexibility, allowing for manual control of the valve in case of an emergency or system test procedures. This makes the Hydraforce 5007022 a highly adaptable solution suitable for a wide range of industrial hydraulic applications where reliable performance is critical.
The Hydraforce 5007022 (5007022) is a solenoid-operated, 4-way, 2-position, direct-acting spool type, screw-in hydraulic cartridge valve designed for efficient control in hydraulic systems. This valve operates by shifting its spool when energized; specifically, it opens flow paths from port 3 to port 4 and from port 2 to port 1. When de-energized, the flow paths revert to port 3 to port 2 and port 4 to port 1, with all ports being open at crossover. This functionality allows for versatile use in various hydraulic applications requiring precise control over fluid direction and flow. The valve features a continuous-duty rated coil that ensures reliability and performance during prolonged operational periods. Its construction includes a hardened precision spool and cage which enhance its durability and lifespan even under rigorous conditions. Additionally, the Hydraforce 5007022 offers optional coil voltages and terminations to accommodate different system requirements and installation environments. Further enhancing its utility are features like efficient wet-armature construction, interchangeable voltage cartridges, and the ability to fully pressurize all ports. The unitized, molded coil design contributes to its compact size while also providing robustness. For environments requiring high levels of protection against water ingress, there is an option for waterproof E-Coils rated up to IP69K. Optional manual override provides added operational flexibility, allowing for manual control of the valve in case of an emergency or system test procedures. This makes the Hydraforce 5007022 a highly adaptable solution suitable for a wide range of industrial hydraulic applications where reliable performance is critical.
Unit weight:
0.11 kg (0.25 lb)
Internal wetted surface area:
120 cm² (18.6 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 241 bar (3500 psi) Burst pressure: 620 bar (9000 psi) Flow Ratings Flow rating: See graph Maximum internal leakage: 164 ml/min (10 in³/min) At port 1, energized 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals -54 to 107 °C (-65 to 225 °F) With urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv08-40) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 ISO 4406 |
| Electrical Parameters | Pull in voltage:
85% of nominal at 40 °C (104 °F) Drop out voltage: 5% of nominal |
| Performance |  |
| Installation Specifications | Cavity:
VC08-4 08-size-4-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 51.2 N-m (40 ft-lb) Aluminum Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV08-40E-H-J-L E Manual Override E BLANK NONE E M Two Position Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK08-4X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
08-4w valve bodies
Coils:
08 size D
coils
08 size E
coils
