HYDRAFORCE
5007005

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

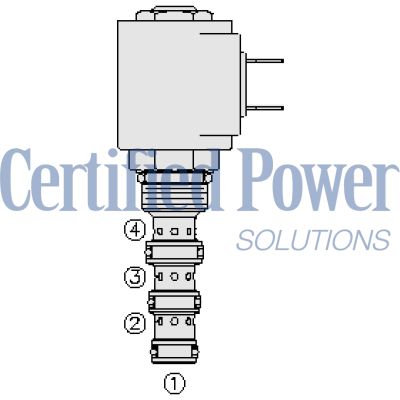

The Hydraforce SV08-40-0-N-00 (5007005) is a high-performance solenoid-operated, 4-way, 2-position, direct-acting spool-type hydraulic cartridge valve. Designed for precise control in hydraulic systems, this valve operates by shifting its spool position when energized and deenergized to alter the flow paths between its ports. Specifically, when deenergized, it connects port 3 to port 2 and port 4 to port 1; upon energization, the connections shift from port 3 to port 4 and from port 2 to port 1 with all ports open at crossover. This valve is engineered for durability and reliability with a continuous-duty rated coil and a hardened precision spool and cage ensuring extended operational life. It features efficient wet-armature construction and cartridges that are voltage interchangeable. The SV08-40-0-N-00 can withstand pressures up to 3000 psi operational, with proof pressure at 3500 psi and burst pressure reaching up to 9000 psi. It also offers flexibility in terms of coil voltages and terminations, with optional waterproof E-Coils rated up to IP69K available for demanding environments. Compact in size, this valve includes options for manual override and can be fully pressurized on all ports. Its unitized, molded coil design supports various hydraulic fluids including mineral-based or synthetic types with lubricating properties across a wide range of viscosities (7.4 to 420 cSt). The valve operates effectively within fluid temperature ranges suitable for different seal materials—buna N seals function between -40°C and +100°C while fluorocarbon seals handle temperatures from -26°C up to +204°C. Ideal for integration into diverse hydraulic applications requiring precise control and robust performance, the Hydraforce SV08-40-0-N-00 offers both versatility in installation with no orientation restrictions and minimal internal leakage ensuring efficient operation under varying conditions.
