HYDRAFORCE
5006812P

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

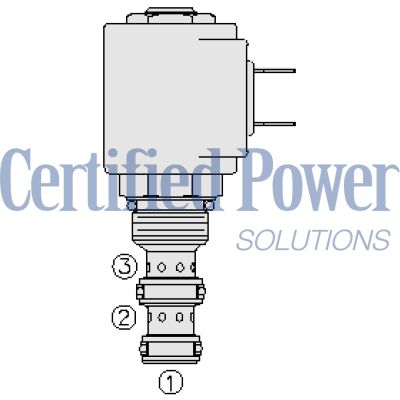

The Hydraforce 5006812P (5006812P) is a solenoid-operated, 2 position, 3 port, direct-acting, spool-type, screw-in hydraulic valve designed for efficient control within hydraulic systems. This valve operates by blocking flow at port 1 while allowing flow from port 2 to port 3 when de-energized. Upon energization, the spool shifts to enable flow from port 2 to port 1 and simultaneously blocks flow at port 3. The design features a continuous-duty rated coil and a hardened precision spool and cage which ensure durability and longevity under continuous operation. The valve is notable for its efficient wet-armature construction and its compact size which makes it suitable for integration into various hydraulic circuits without requiring excessive space. Its cartridges are voltage interchangeable which provides flexibility in usage across different systems with varying voltage requirements. All ports on the valve can be fully pressurized, enhancing its versatility in application. Additional features of the Hydraforce 5006812P include optional coil voltages and terminations that cater to specific needs or configurations. The unitized, molded coil design aids in robustness and reliability of performance. For environments requiring rigorous standards, optional waterproof E-Coils are available that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. Moreover, this model offers a manual override option which can be crucial during maintenance or emergency situations where electronic control may be compromised. This feature ensures that operators can maintain control over the system manually if needed. With its industry common cavity design, this valve not only promises easy installation but also compatibility with existing systems, making it a practical choice for system upgrades or replacements.
