HYDRAFORCE
5005233
$165.00 USD
- HYDRAFORCE
- Material:5005233
- Model:SP08-47DB-0-N-24ER SOLENOID VALVE
- Summary:PROPORTIONAL SOLENOID VALVE 3 POSITION, 4 WAY, MOTOR SPOOL
Quantity in stock: 0
The Hydraforce 5005233 (5005233) is a high-performance solenoid operated, direct acting, 3 position, 4-way, motor spool, proportional directional control valve. This precision-engineered valve is designed as a screw-in hydraulic cartridge for use with general purpose hydraulic fluids. Its configuration allows for versatile flow direction management in hydraulic systems. Specifically, in its de-energized state, the SP0847DX model blocks flow to port 3 while enabling flow from port 2 to port 1 and from port 4 to port 1. Energizing coil 1 modifies the flow path allowing fluid transfer from port 3 to port 4 and maintaining the pathway from port 2 to port 1. Similarly, activating coil 2 changes the dynamics so that fluid can move from port 3 to port 2 and from port 4 to port 1. This model is noted for its durable construction featuring a hardened precision spool and cage which ensure an extended operational life even under rigorous conditions. It includes a continuous-duty rated solenoid that enhances its reliability for sustained use. Additionally, it offers flexibility in customization with options for different coil voltages and terminations to suit various system requirements. The manual override feature provides an additional layer of operational control. For environments requiring robust protection against moisture and dust, this valve can be equipped with optional waterproof E-Coils rated up to IP69K. Its efficient wet-armature construction further complements its performance by ensuring effective operation within hydraulic systems. The Hydraforce SP0847DX also benefits from being voltage interchangeable and fits an industry-common cavity, which simplifies installation and maintenance processes across diverse applications.

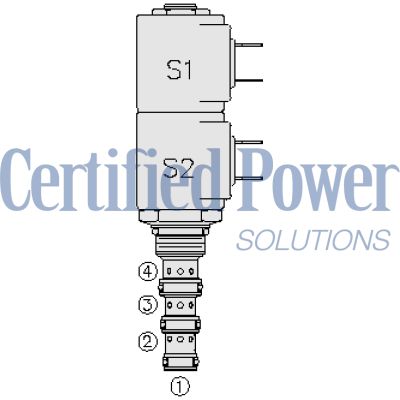

Description DESCRIPTION: A solenoid operated, direct acting, 3 position, 4-way, motor spool, proportional directional control. It is a screw in hydraulic cartridge valve for use with general purpose hydraulic fluids. Manual override feature is available as an option. Operation When de-energized, the SP08-47DX blocks flow to port 3, while allowing flow from port 2 to port 1 and port 4 to port 1. When coil #1 is energized, flow is allowed from port 3 to port 4, and from port 2 to port 1t. When coil #2 is energized. flow is allowed from port 3 to port 2, and from port 4 to port 1. Note: While port 1 may be fully pressurized, it is not intended for use as the valve's inlet. Features Continuous-duty rated solenoid. Hardened precision spool and cage for long life. Optional coil voltages and terminations. Manual override option. Optional waterproof E-Coils rated up to IP69K. Efficient wet-armature construction. Cartridges are voltage interchangeable. Industry-common cavity.
Maximum operating contamination level:
18/16/13 per ISO 4406
Unit weight:
0.14 kg (0.31 lb)
Internal wetted surface area:
158 cm² (24.5 in²)

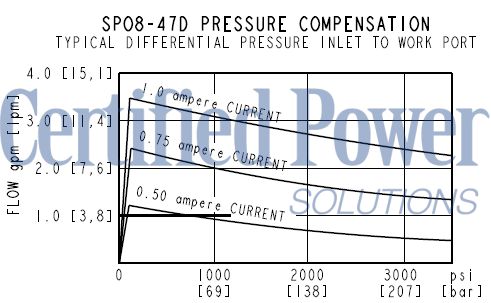

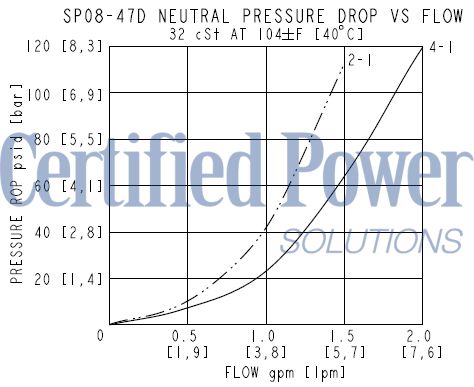

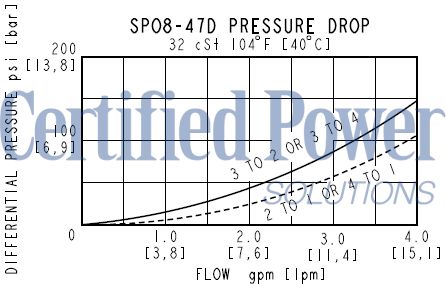

| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Per NFPA T2.6.1 R2-2000 using 99.9 assurance and 90% verification levels Proof pressure: 345 bar (5000 psi) For SP08-47D only Burst pressure: 655 bar (9500 psi) For SP08-47D only Flow Ratings Flow rating: See performance graphs Maximum internal leakage: 164 ml/min (10 in³/min) At 207 bar (3000 psi) Hysteresis: Less than 0.8 lpm (0.2 gpm) From threshold to max control current Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With Buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 158 °F) Ambient temperature: -40 to 70 °C (-40 to 158 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM B117 |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties. Fluid viscosity range: 7.4 to 420 cSt |
| Electrical Parameters | Valve inductance:

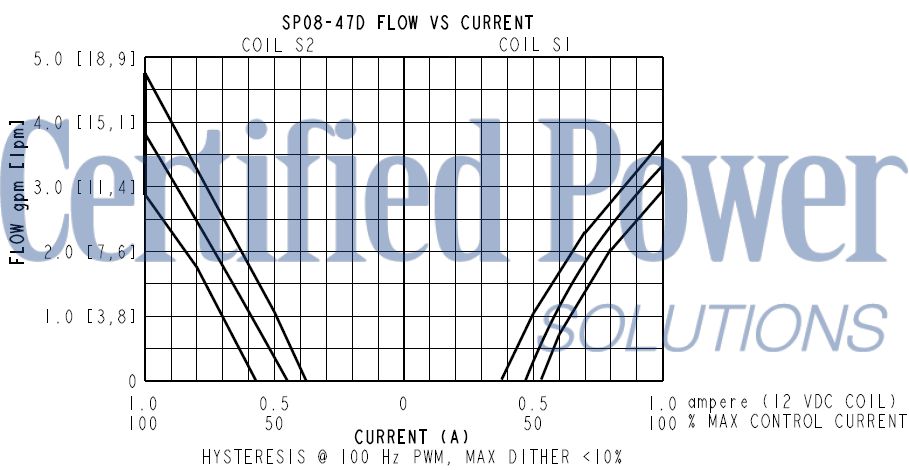

124 mH S1 97 mH S2 Maximum control current: 1.0 A 12 V coil Threshold current: See performance graphs Dither PWM frequency: 90 to 110 Hz |

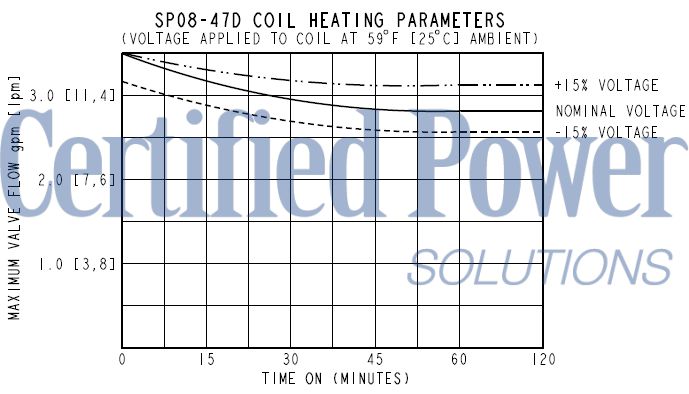

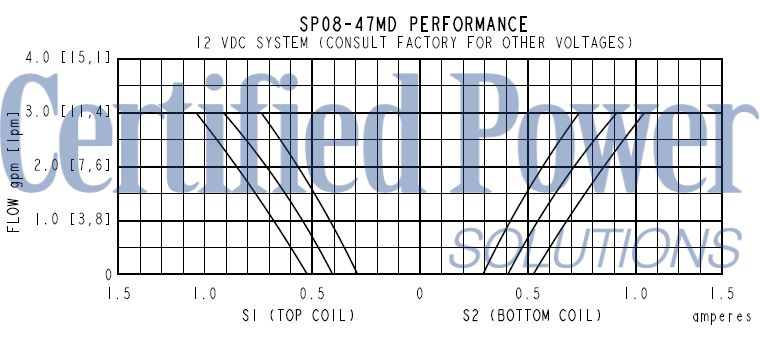

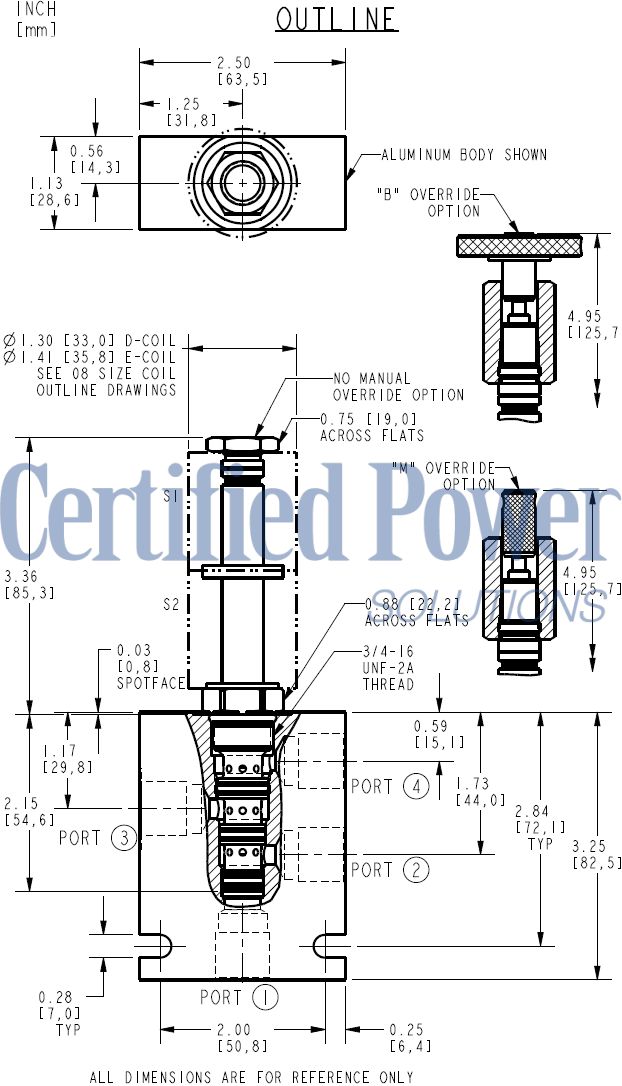

| Performance |       |
| Installation Specifications | Cavity:
VC08-4 08-size-4-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Up to maximum of 40.7 N-m (30 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP08-47DE-H-J-L E Manual Override E BLANK NONE E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK08-4X-MMM
X = Seal option
Seal kit installation instructions
Housings:
Available
08-4w valve bodies
Coils:
08 size D
coils
08 size E
coils
