- Model:SP10-21-6T-N-12ER/Z SOLENOID VALVE
- Summary:SOLENOID PROPORTIONAL VALVE POPPET, 2 PORT, NORMALLY OPEN
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

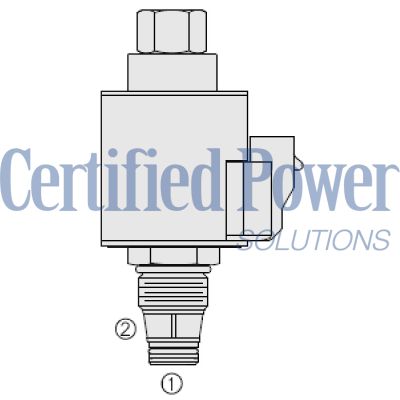

The Hydraforce 5005043 (5005043) is a solenoid-operated, 2-port, normally open, poppet-type, proportional, screw-in hydraulic cartridge valve. It is specifically designed for low leakage blocking and load-holding applications. The operation of this model involves acting as a check valve when energized, allowing fluid flow from port 1 to port 2 while blocking the flow from port 2 to port 1. Conversely, when de-energized, the poppet lifts to open the flow path from port 2 to port 1. This model is distinguished by its continuous-duty rated coil and efficient wet-armature construction. Additionally, it offers optional waterproof E-Coils that are rated up to IP69K, ensuring high performance in environments requiring stringent ingress protection standards. The Hydraforce 5005043 also features an industry common cavity design which facilitates ease of installation and compatibility with existing systems. This valve is ideal for applications requiring precise control of fluid handling and directional flow in hydraulic circuits.
The Hydraforce 5005043 (5005043) is a solenoid-operated, 2-port, normally open, poppet-type, proportional, screw-in hydraulic cartridge valve. It is specifically designed for low leakage blocking and load-holding applications. The operation of this model involves acting as a check valve when energized, allowing fluid flow from port 1 to port 2 while blocking the flow from port 2 to port 1. Conversely, when de-energized, the poppet lifts to open the flow path from port 2 to port 1. This model is distinguished by its continuous-duty rated coil and efficient wet-armature construction. Additionally, it offers optional waterproof E-Coils that are rated up to IP69K, ensuring high performance in environments requiring stringent ingress protection standards. The Hydraforce 5005043 also features an industry common cavity design which facilitates ease of installation and compatibility with existing systems. This valve is ideal for applications requiring precise control of fluid handling and directional flow in hydraulic circuits.
Materials:
Steel with hardened work surfaces zinc-plated exposed
surfaces
Unit weight:
0.17 kg (0.37 lb)
0.59 kg (1.30 lb)
Including e-coil
Internal wetted surface area:
176 cm² (27.24 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Flow Ratings Maximum internal leakage: 5 drops/min At nominal voltage to coil 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/1 per ISO 4406 |
| Electrical Parameters | Minimum operating PWM dither frequency:
70 Hz |
| Performance |   |
| Installation Specifications | Cavity:

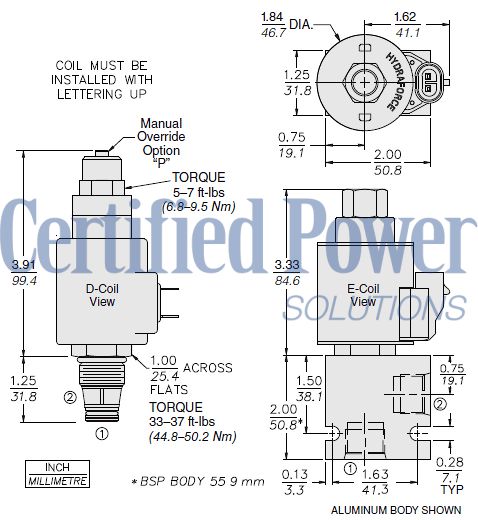

VC10-2 10-size-2-way Cavities Cartridge installation torque: 44.8 to 50.2 N-m (33 to 37 ft-lb) Maximum allowable torque: 6.8 to 9.5 N-m (50 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP10-21DEG-H-J-L D Poppet Metering D A Linear Poppet Metering D BLANK Standard Poppet Metering E Manual Override E BLANK NONE E K Momentary Push Override, Knob E P Momentary Push Override, Button G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-2X-T
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
