HYDRAFORCE
5005019
$60.75 USD
- HYDRAFORCE
- Material:5005019

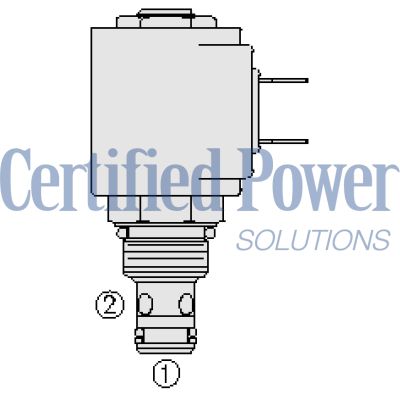

- Model:SV08-25-0-N-12DR/D W/ 7004406 NUT
- Summary:SOLENOID CARTRIDGE VALVE SPOOL, 2 PORT, NORMALLY OPEN
Quantity in stock: 10
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce SV08-25-0-N-12DR/D (5005019) is a high-performance solenoid-operated cartridge valve, specifically designed for hydraulic applications requiring reliable bidirectional blocking. This 2-port, normally open, direct-acting spool-type valve is built to function efficiently in low flow circuits. It features a compact size and an industry-common cavity, making it versatile for various hydraulic systems. When de-energized, the SV08-25 allows free flow in both directions, maintaining system efficiency and responsiveness. Upon energization, the spool shifts securely to block flow bidirectionally, ensuring precise control over fluid movement within the circuit. The valve's construction includes a hardened precision spool and cage which significantly enhances its durability and lifespan. This model also offers manual override options which provide additional operational flexibility and safety during maintenance or unexpected power failures. It supports various coil voltages and terminations to accommodate different electrical requirements, along with optional waterproof E-Coils that are rated up to IP69K for superior moisture resistance. In terms of technical specifications, this valve can handle a pressure rating of up to 207 bar (3000 psi), with proof pressure reaching 241 bar (3500 psi) and a burst pressure capability of 620 bar (9000 psi). It operates effectively within a temperature range of -40°C to +100°C (-40°F to +212°F) with standard Buna N seals. The unit’s weight is approximately 0.10 kg (0.22 lb), facilitating easy installation without significant alterations to existing systems. Overall, the Hydraforce SV08-25-0-N-12DR/D provides robust performance for hydraulic systems requiring precise flow control and reliability in challenging conditions.
The Hydraforce SV08-25-0-N-12DR/D (5005019) is a high-performance solenoid-operated cartridge valve, specifically designed for hydraulic applications requiring reliable bidirectional blocking. This 2-port, normally open, direct-acting spool-type valve is built to function efficiently in low flow circuits. It features a compact size and an industry-common cavity, making it versatile for various hydraulic systems. When de-energized, the SV08-25 allows free flow in both directions, maintaining system efficiency and responsiveness. Upon energization, the spool shifts securely to block flow bidirectionally, ensuring precise control over fluid movement within the circuit. The valve's construction includes a hardened precision spool and cage which significantly enhances its durability and lifespan. This model also offers manual override options which provide additional operational flexibility and safety during maintenance or unexpected power failures. It supports various coil voltages and terminations to accommodate different electrical requirements, along with optional waterproof E-Coils that are rated up to IP69K for superior moisture resistance. In terms of technical specifications, this valve can handle a pressure rating of up to 207 bar (3000 psi), with proof pressure reaching 241 bar (3500 psi) and a burst pressure capability of 620 bar (9000 psi). It operates effectively within a temperature range of -40°C to +100°C (-40°F to +212°F) with standard Buna N seals. The unit’s weight is approximately 0.10 kg (0.22 lb), facilitating easy installation without significant alterations to existing systems. Overall, the Hydraforce SV08-25-0-N-12DR/D provides robust performance for hydraulic systems requiring precise flow control and reliability in challenging conditions.
Unit weight:
0.10 kg (0.22 lb)
SV08-25
0.11 kg (0.24 lb)
Sv08-25j/y
Internal wetted surface area:
79 cm² (12.3 in²)
(sv0825)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 241 bar (3500 psi) SV08-25) 234 bar (3400 psi) Sv08-25j/y) Burst pressure: 620 bar (9000 psi) Flow Ratings Flow rating: See "performance range" for both SV08-25 and sv08-25j/y Maximum internal leakage: 82 ml/min (5 in³/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With urethane/polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV08-25EG-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK08-2X-M
X = seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
08 size D
coils
08 size E
coils
