HYDRAFORCE
5003606
$105.75 USD
- HYDRAFORCE
- Material:5003606
- Model:SP10-47D-0-N-00 SOLENOID VALVE
- Summary:SOLENOID PROPORTIONAL VALVE 3 POSITION, 4 PORT MOTOR CENTER
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

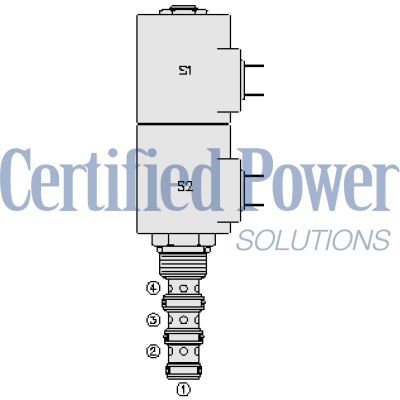

The Hydraforce 5003606 (5003606) is a high-performance solenoid operated, direct acting, 3 position, 4-way, motor spool, proportional directional control valve. This valve is engineered as a screw-in hydraulic cartridge valve that is compatible with general purpose hydraulic fluids. The design of the SP1047DX model features multiple operational states: when de-energized, it blocks flow to port 3 while facilitating flow from port 2 to port 1 and from port 4 to port 1. Upon energizing coil 1, the flow is directed from port 3 to port 4 and from port 2 to port 1; similarly, energizing coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. This model boasts a continuous-duty rated solenoid and incorporates a hardened precision spool and cage which enhance its longevity and reliability in various applications. The valve offers optional features such as different coil voltages and terminations, along with a manual override feature. Additionally, for environments requiring robust durability against moisture ingress, there are optional waterproof E-Coils rated up to IP69K available. The efficient wet-armature construction of the valve ensures optimal performance. The Hydraforce SP1047DX model also presents good linearity and hysteresis characteristics making it an excellent choice for precise control in fluid power applications. Its industry-common cavity design facilitates ease of installation and compatibility with existing systems. The cartridges are voltage interchangeable which provides flexibility for system integration or upgrades without extensive modifications. This versatile configuration makes the Hydraforce SP1047DX suitable for a broad range of industrial applications requiring reliable directional control of hydraulic flows.
The Hydraforce 5003606 (5003606) is a high-performance solenoid operated, direct acting, 3 position, 4-way, motor spool, proportional directional control valve. This valve is engineered as a screw-in hydraulic cartridge valve that is compatible with general purpose hydraulic fluids. The design of the SP1047DX model features multiple operational states: when de-energized, it blocks flow to port 3 while facilitating flow from port 2 to port 1 and from port 4 to port 1. Upon energizing coil 1, the flow is directed from port 3 to port 4 and from port 2 to port 1; similarly, energizing coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. This model boasts a continuous-duty rated solenoid and incorporates a hardened precision spool and cage which enhance its longevity and reliability in various applications. The valve offers optional features such as different coil voltages and terminations, along with a manual override feature. Additionally, for environments requiring robust durability against moisture ingress, there are optional waterproof E-Coils rated up to IP69K available. The efficient wet-armature construction of the valve ensures optimal performance. The Hydraforce SP1047DX model also presents good linearity and hysteresis characteristics making it an excellent choice for precise control in fluid power applications. Its industry-common cavity design facilitates ease of installation and compatibility with existing systems. The cartridges are voltage interchangeable which provides flexibility for system integration or upgrades without extensive modifications. This versatile configuration makes the Hydraforce SP1047DX suitable for a broad range of industrial applications requiring reliable directional control of hydraulic flows.
Unit weight:
0.27 kg (0.60 lb)
SP10-47D
Internal wetted surface area:
233 cm² (36.1 in²)
SP10-47D
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: 22.7 lpm (6.0 gpm) 20.8 lpm (5.5 gpm) Manual override options "b" and "m" Maximum internal leakage: 246 ml/min (15 in³/min) From port 3 to 4 or port 3 to 2 with the valve in neutral at 207 bar (3000 psi) Hysteresis per cent: 10 % Maximum, flow rating between lpm (1.0 to 5.5 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Electrical Parameters | Valve inductance:
198 mH At 1.2 A Maximum control current: 1.2 A For coil 12 V Threshold current: 0.40 A (S1) nominal for coil 12 V 0.42 A (S2) nominal for coil 12 V Dither PWM frequency: 100 Hz |

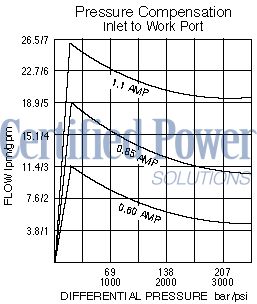

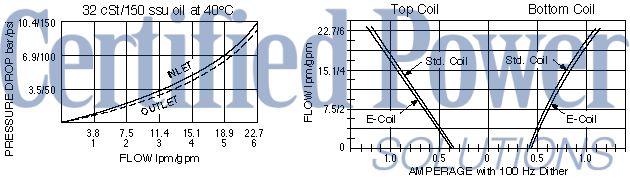

| Performance |   |
| Installation Specifications | Cavity:
VC10-4 10-size-4-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP10-47DE-H-J-L E Manual Override E B Momentary Push/Pull Override, 1.5" Diameter Aluminum Knob E BLANK NONE E K Three Position Override, 1.5" Diameter Aluminum Knob E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-4X-MMM
X = seal option
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
Coils:
10 size D
coils
10 size E
coils
