HYDRAFORCE
5003605

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

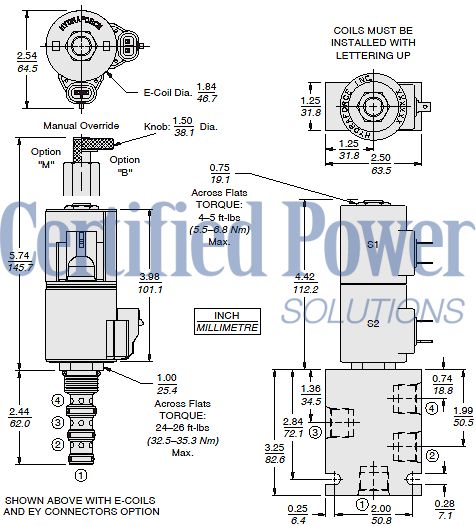

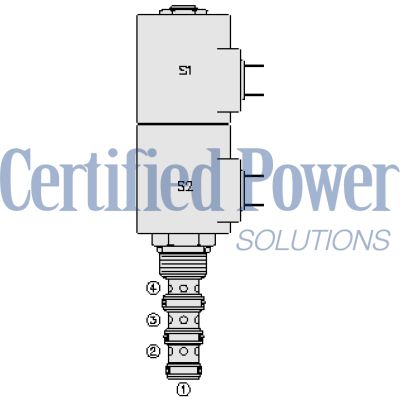

The Hydraforce SP10-47C-0-N-00 (5003605) is a robust and versatile solenoid-operated, direct acting, 3-position, 4-way, closed center spool, proportional directional control valve. Specifically designed for general purpose hydraulic fluids, this valve features a screw-in hydraulic cartridge design that ensures reliable integration into various hydraulic systems. Its manual override feature provides additional operational flexibility. Operationally, the SP10-47C-0-N-00 remains closed when deenergized, blocking flow to all ports. Upon energization of coil 1, it directs flow from port 3 to port 4 and from port 2 to port 1. Similarly, energizing coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. It's important to note that while port 1 may be fully pressurized, it is not intended as the valve's inlet. This model is built for durability and performance with features like a continuous-duty rated solenoid and hardened precision spool and cage. It offers optional coil voltages and terminations along with a waterproof E-Coils option rated up to IP69K for enhanced environmental resistance. The efficient wet-armature construction minimizes power loss, while interchangeable voltage cartridges add versatility across different system requirements. In terms of technical specifications, the SP10-47C-0-N-00 can handle pressures up to 250 bar (3625 psi), with proof pressure at 345 bar (5000 psi) and burst pressure reaching up to 827 bar (12000 psi). Flow rates are optimized at approximately 22.7 liters per minute (6 gpm), with maximum internal leakage contained within stringent limits under neutral conditions at high pressures. This valve model is particularly suited for applications requiring precise control over fluid handling within hydraulic systems in various machinery setups where reliability and efficiency are paramount.
