HYDRAFORCE
5003601

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

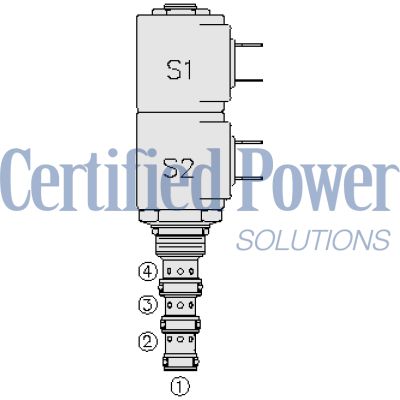

The Hydraforce 5003601 (5003601) is a solenoid operated, direct acting, 3 position, 4-way motor spool proportional directional control valve. This advanced hydraulic cartridge valve is designed for use with general-purpose hydraulic fluids. The model features a hardened precision spool and cage which ensures long service life and reliability under varying operational conditions. Its efficient wet-armature construction supports continuous-duty applications, making it an ideal choice for robust hydraulic systems. This valve operates in three distinct modes: when de-energized, it blocks flow to port 3 while allowing flow from port 2 to port 1 and from port 4 to port 1; energizing coil 1 allows flow from port 3 to port 4 and from port 2 to port 1; energizing coil 2 enables flow from port 3 to port 2 and from port 4 to port 1. Notably, while port 1 may be fully pressurized, it should not be used as the inlet for the valve. The Hydraforce model offers flexibility in installation and operation with optional features such as different coil voltages and terminations, manual override, and waterproof E-Coils that are rated up to IP69K. These additional features enhance its usability in various environments and conditions. The industry-common cavity design of this model facilitates easy integration or replacement within existing hydraulic systems without the need for extensive modifications.
