HYDRAFORCE
5003560
$83.00 USD
- HYDRAFORCE
- Material:5003560
- Model:SP10-20-0-N-00 SOLENOID VALVE
- Summary:SOLENOID VALVE POPPET, 2 WAY NORMALLY CLOSED
Quantity in stock: 3
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

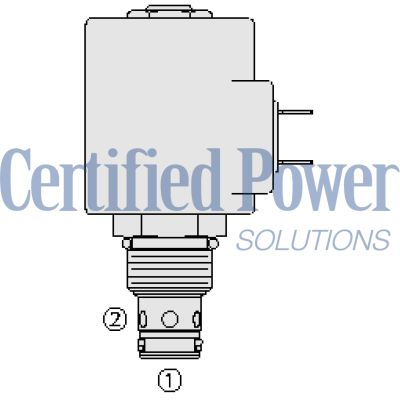

The Hydraforce SP10-20-0-N-00 (5003560) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. Designed for precise low leakage blocking and load-holding applications in various hydraulic systems, this valve ensures reliable operation and control. When de-energized, the SP10-20-0-N-00 functions as a check valve, allowing fluid flow from port 1 to port 2 while blocking the opposite direction. Upon energization, the poppet lifts to permit flow from port 2 to port 1. This model boasts a continuous-duty rated coil and efficient wet-armature construction that contribute to its robust performance and durability. It includes manual override options and can be fitted with optional waterproof E-Coils that are rated up to IP69K for high-level protection against dust and water ingress, making it suitable for harsh environmental conditions. The valve fits an industry common cavity which simplifies installation across various applications. The SP10-20-0-N-00 is capable of handling pressures up to 250 bar (3625 psi) with proof pressures reaching up to 345 bar (5000 psi), and burst pressures up to 827 bar (12000 psi). It operates efficiently within a fluid temperature range of -40°C to +100°C with Buna N seals, -26°C to +204°C with Viton seals, and -54°C to +107°C with polyurethane seals. This versatility in seal compatibility allows it to be used with different fluids based on environmental requirements and application specifics. Additionally, the valve's design minimizes internal leakage — not exceeding five drops per minute at 207 bar (3000 psi) — ensuring efficient performance even under demanding conditions. The SP10-20-0-N-00 is an exemplary choice for engineers seeking a reliable valve solution that offers both functionality and adaptability in fluid power applications.
The Hydraforce SP10-20-0-N-00 (5003560) is a solenoid-operated, 2-way, normally closed, poppet-type, proportional screw-in hydraulic cartridge valve. Designed for precise low leakage blocking and load-holding applications in various hydraulic systems, this valve ensures reliable operation and control. When de-energized, the SP10-20-0-N-00 functions as a check valve, allowing fluid flow from port 1 to port 2 while blocking the opposite direction. Upon energization, the poppet lifts to permit flow from port 2 to port 1. This model boasts a continuous-duty rated coil and efficient wet-armature construction that contribute to its robust performance and durability. It includes manual override options and can be fitted with optional waterproof E-Coils that are rated up to IP69K for high-level protection against dust and water ingress, making it suitable for harsh environmental conditions. The valve fits an industry common cavity which simplifies installation across various applications. The SP10-20-0-N-00 is capable of handling pressures up to 250 bar (3625 psi) with proof pressures reaching up to 345 bar (5000 psi), and burst pressures up to 827 bar (12000 psi). It operates efficiently within a fluid temperature range of -40°C to +100°C with Buna N seals, -26°C to +204°C with Viton seals, and -54°C to +107°C with polyurethane seals. This versatility in seal compatibility allows it to be used with different fluids based on environmental requirements and application specifics. Additionally, the valve's design minimizes internal leakage — not exceeding five drops per minute at 207 bar (3000 psi) — ensuring efficient performance even under demanding conditions. The SP10-20-0-N-00 is an exemplary choice for engineers seeking a reliable valve solution that offers both functionality and adaptability in fluid power applications.
Unit weight:
0.16 kg (0.34 lb)
Internal wetted surface area:
12065 mm² (18.7 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: See performance graphs Maximum internal leakage: 5 drops/min At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With viton seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Electrical Parameters | Valve inductance:
173.3 mH At 1.2 A Maximum control current: 1.44 A 10 V D-series coil 1.20 A 12 V D-series coil 1.40 A 12 V E-series coil 0.74 A 20 V D-series coil 0.60 A 24 V D-series coil 0.70 A 24 V E-series coil Threshold current: 0.36 A 10 V D-series coil 0.30 A 12 V D-series coil 0.30 A 12 V E-series coil 0.18 A 20 V D-series coil 0.15 A 24 V D-series coil 0.15 A 24 V E-series coil Dither PWM frequency: 100 Hz |
| Performance |   |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 44.9 to 50.3 N-m (33 to 37 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP10-20DEG-H-J-L D Poppet Metering D A Linear Poppet Metering D BLANK Standard Poppet Metering E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E T Variable Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK10-2X-T
X = seal option
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
