HYDRAFORCE
5003408
$133.75 USD
- HYDRAFORCE
- Material:5003408
- Model:SP08-47D-0-N-24DS SOLENOID VALVE
- Summary:PROPORTIONAL SOLENOID VALVE 3 POSITION, 4 WAY, MOTOR SPOOL
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

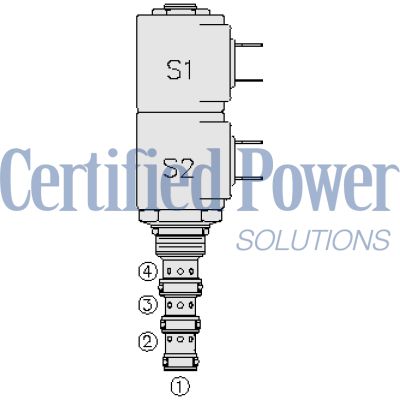

The Hydraforce SP08-47D (5003408) is a high-performance solenoid-operated, direct-acting, 3-position, 4-way motor spool proportional directional control valve. Engineered for precision and reliability, it features a screw-in hydraulic cartridge design suitable for use with general-purpose hydraulic fluids. This model offers versatility in operation; when de-energized, it blocks flow to port 3 while allowing flow from ports 2 to 1 and 4 to 1. Energizing coil 1 permits flow from port 3 to port 4 and from port 2 to port 1; similarly, activating coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. The SP08-47D is built for durability and continuous duty, featuring a hardened precision spool and cage that ensure long life even under demanding conditions. It includes options for manual override, various coil voltages and terminations, as well as waterproof E-Coils rated up to IP69K. The efficient wet-armature construction along with interchangeable voltage cartridges add to its robustness and functional adaptability. This valve is designed with an industry-common cavity (VC084) which simplifies installation processes across various applications. It supports a maximum operating pressure of up to 3500 psi with proof pressure at 5000 psi and burst pressure reaching up to an impressive 9500 psi. The operating temperatures range from -40°C to +100°C with Buna N seals, offering flexibility for different environmental conditions. Additional features include optional seal kits and various housing or coil types that enhance its application across different systems. Overall, the Hydraforce SP08-47D provides a reliable solution for directing flow in hydraulic systems requiring precise control and adaptability in configuration and environmental resilience.
The Hydraforce SP08-47D (5003408) is a high-performance solenoid-operated, direct-acting, 3-position, 4-way motor spool proportional directional control valve. Engineered for precision and reliability, it features a screw-in hydraulic cartridge design suitable for use with general-purpose hydraulic fluids. This model offers versatility in operation; when de-energized, it blocks flow to port 3 while allowing flow from ports 2 to 1 and 4 to 1. Energizing coil 1 permits flow from port 3 to port 4 and from port 2 to port 1; similarly, activating coil 2 allows flow from port 3 to port 2 and from port 4 to port 1. The SP08-47D is built for durability and continuous duty, featuring a hardened precision spool and cage that ensure long life even under demanding conditions. It includes options for manual override, various coil voltages and terminations, as well as waterproof E-Coils rated up to IP69K. The efficient wet-armature construction along with interchangeable voltage cartridges add to its robustness and functional adaptability. This valve is designed with an industry-common cavity (VC084) which simplifies installation processes across various applications. It supports a maximum operating pressure of up to 3500 psi with proof pressure at 5000 psi and burst pressure reaching up to an impressive 9500 psi. The operating temperatures range from -40°C to +100°C with Buna N seals, offering flexibility for different environmental conditions. Additional features include optional seal kits and various housing or coil types that enhance its application across different systems. Overall, the Hydraforce SP08-47D provides a reliable solution for directing flow in hydraulic systems requiring precise control and adaptability in configuration and environmental resilience.
Maximum operating contamination level:
18/16/13 per ISO 4406
Unit weight:
0.14 kg (0.31 lb)
Internal wetted surface area:
158 cm² (24.5 in²)
| Ratings | Pressure Ratings Pressure rating: 241 bar (3500 psi) Per NFPA T2.6.1 R2-2000 using 99.9 assurance and 90% verification levels Proof pressure: 345 bar (5000 psi) For SP08-47D only Burst pressure: 655 bar (9500 psi) For SP08-47D only Flow Ratings Flow rating: See performance graphs Maximum internal leakage: 164 ml/min (10 in³/min) At 207 bar (3000 psi) Hysteresis: Less than 0.8 lpm (0.2 gpm) From threshold to max control current Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With Buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 158 °F) Ambient temperature: -40 to 70 °C (-40 to 158 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM B117 |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties. Fluid viscosity range: 7.4 to 420 cSt |
| Electrical Parameters | Valve inductance:
124 mH S1 97 mH S2 Maximum control current: 1.0 A 12 V coil Threshold current: See performance graphs Dither PWM frequency: 90 to 110 Hz |
| Performance |       |
| Installation Specifications | Cavity:
VC08-4 08-size-4-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Up to maximum of 40.7 N-m (30 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SP08-47DE-H-J-L E Manual Override E BLANK NONE E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 6TD Ductile Iron SAE 6 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DR 12 VDC, D-Coil, Deutsch L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12ER 12 VDC, E-Coil, Deutsch L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24ER 24 VDC, E-Coil, Deutsch L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade |
Seal kit:
SK08-4X-MMM
X = Seal option
Seal kit installation instructions
Housings:
Available
08-4w valve bodies
Coils:
08 size D
coils
08 size E
coils
