HYDRAFORCE
5000475
$128.50 USD
- HYDRAFORCE
- Material:5000475
- Model:SV08-20-6T-N-115AP SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE POPPET, 2 WAY, NORMALLY CLOSED
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

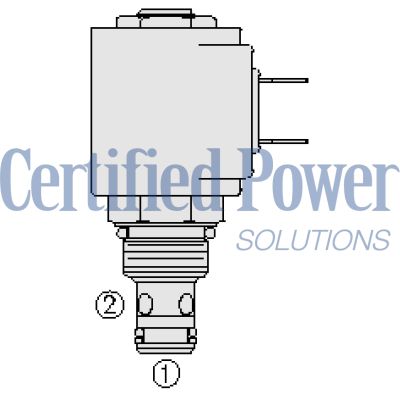

The Hydraforce SV08-20-6T-N-115AP (5000475) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for low flow circuits with pull-only manual override requirements. This valve functions as a blocking or load-holding device. When de-energized, it acts as a check valve allowing flow from port 1 to port 2 while blocking the opposite direction. Upon energization, the poppet lifts to permit flow from port 2 to port 1, while severely restricting flow in the reverse direction. This model is built with a continuous-duty rated coil and features a hardened seat for enhanced durability and minimal leakage. It offers optional coil voltages and terminations, with cartridges that are voltage interchangeable for flexibility in application. The unitized, molded coil design supports robust operation and the manual override option provides additional control. It fits an industry common cavity and is noted for its compact size. The SV08-20-6T-N-115AP is capable of handling pressures up to 207 bar (3000 psi) and has proof pressures of up to 241 bar (3500 psi). Burst pressure ratings reach up to 620 bar (9000 psi) without manual override and up to 862 bar (12500 psi) with manual override. It supports operating fluid temperatures ranging from -40°C to +100°C (-40°F to +212°F) depending on seal material. Additional specifications include minimal internal leakage rates, compatibility with mineral-based or synthetic hydraulic fluids, and an operating viscosity range of 7.4 to 420 cSt. This valve is designed for easy installation in VC082 cavities using standard torque settings and does not have orientation restrictions during installation. Accessories such as seal kits and various housings are available to ensure optimal performance across different applications.
The Hydraforce SV08-20-6T-N-115AP (5000475) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for low flow circuits with pull-only manual override requirements. This valve functions as a blocking or load-holding device. When de-energized, it acts as a check valve allowing flow from port 1 to port 2 while blocking the opposite direction. Upon energization, the poppet lifts to permit flow from port 2 to port 1, while severely restricting flow in the reverse direction. This model is built with a continuous-duty rated coil and features a hardened seat for enhanced durability and minimal leakage. It offers optional coil voltages and terminations, with cartridges that are voltage interchangeable for flexibility in application. The unitized, molded coil design supports robust operation and the manual override option provides additional control. It fits an industry common cavity and is noted for its compact size. The SV08-20-6T-N-115AP is capable of handling pressures up to 207 bar (3000 psi) and has proof pressures of up to 241 bar (3500 psi). Burst pressure ratings reach up to 620 bar (9000 psi) without manual override and up to 862 bar (12500 psi) with manual override. It supports operating fluid temperatures ranging from -40°C to +100°C (-40°F to +212°F) depending on seal material. Additional specifications include minimal internal leakage rates, compatibility with mineral-based or synthetic hydraulic fluids, and an operating viscosity range of 7.4 to 420 cSt. This valve is designed for easy installation in VC082 cavities using standard torque settings and does not have orientation restrictions during installation. Accessories such as seal kits and various housings are available to ensure optimal performance across different applications.
Unit weight:
0.10 kg (0.22 lb)
SV08-20
0.15 kg (0.33 lb)
SV08-20J/Y/M
Internal wetted surface area:
83 cm² (12.8 in²)
(SV08-20)
86.1 cm² (13.3 in²)
(SV08-20J/Y/M)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 241 bar (3500 psi) SV08-20 234.5 bar (3400 psi) Manual override Burst pressure: 620 bar (9000 psi) SV08-20 862 bar (12500 psi) Manual override Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min SV08-20/M at 207 bar (3000 psi) 5 drops/min SV08-20 J/Y at 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (GSV08-20XX) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 54 N-m (40 ft-lb) In aluminum Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV08-20EG-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK08-2X-T
= N, V and P seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
08 size D
coils
08 size E
coils
