HYDRAFORCE
5000046

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

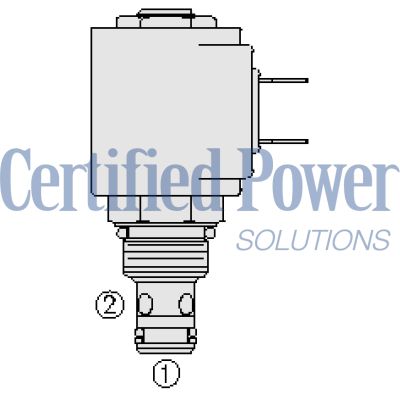

The Hydraforce 5000046 (5000046) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve designed for precision and reliability in low flow hydraulic systems. This model is equipped with a standard SV0820 and manual override MO options, making it versatile for applications requiring pull-only manual override such as handles or cable linkages. The valve operates by allowing flow from port 1 to port 2 when de-energized, acting as a check valve and effectively blocking the opposite flow from port 2 to port 1. Upon energization, the valve's poppet lifts to open the pathway from port 2 to port 1 while severely restricting the flow in the reverse direction. Key features of this model include a continuous-duty rated coil and a hardened seat that ensures long life and minimal leakage, enhancing the overall efficiency and durability of the system it is integrated into. The Hydraforce 5000046 also offers optional coil voltages and terminations to accommodate varying operational requirements and setups. The cartridges are voltage interchangeable which provides flexibility in maintenance and replacement processes. Its unitized, molded coil design contributes to its compact size and robust performance. Additionally, this valve benefits from an industry common cavity configuration which simplifies installation processes and compatibility with existing systems. Its compact size makes it an ideal choice for space-constrained applications while still maintaining high performance standards required for effective load holding or blocking operations in hydraulic circuits.
