HYDRAFORCE
5000042

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

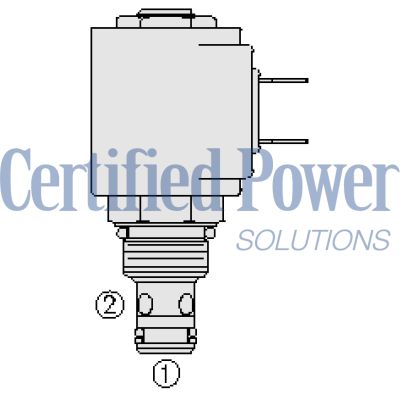

The Hydraforce SV08-20-0-N-24AP (5000042) is a solenoid-operated, 2-way, normally closed, poppet-type hydraulic cartridge valve designed for precise control in hydraulic systems. This model features a screw-in design with a standard SV08-20 configuration and includes manual override options. It is primarily used as a blocking or load-holding device suitable for low flow circuits that require pull-only manual override capabilities, such as those operated by handles or cable linkages. When de-energized, the SV08-20-0-N-24AP functions as a check valve, allowing fluid to flow from port 1 to port 2 while blocking the flow in the reverse direction. Upon energization, the valve’s poppet lifts to permit flow from port 2 to port 1, simultaneously restricting flow from port 1 to port 2. This dual functionality makes it versatile for various applications requiring controlled flow and pressure. The valve is built with a hardened seat to ensure durability and minimal leakage and features continuous-duty rated coils that are interchangeable across different voltages. Its compact size and industry-common cavity make it easy to integrate into existing systems without extensive modifications. The unit also boasts impressive pressure ratings, including an operational pressure of up to 207 bar (3000 psi), proof pressures up to 241 bar (3500 psi), and burst pressures reaching up to 620 bar (9000 psi). Additional features include optional coil voltages and terminations, a unitized molded coil design for robust performance, and manual override options enhancing operational flexibility. The SV08-20-0-N-24AP is engineered for reliability in demanding environments where precise hydraulic control is necessary.
