- Material:5000033
- Model:SV08-22-0-N-24DL W/ 7004406 NUT
- Summary:SOLENOID CARTRIDGE ASSEMBLY POPPET, 2 WAY, NORMALLY CLOSED
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

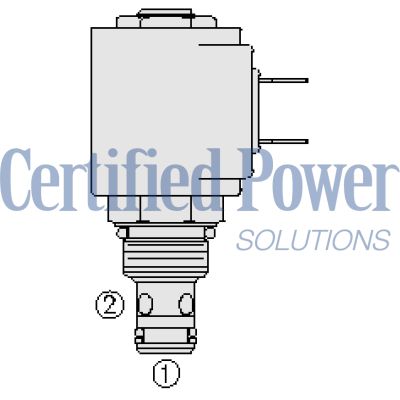

The Hydraforce 5000033 (5000033) is a solenoid-operated, 2-way, normally closed, poppet-type screw-in hydraulic cartridge valve that excels in low leakage blocking and load holding applications. The SV0822 model operates as a check valve when de-energized, allowing fluid flow from port 1 to port 2 while blocking the reverse flow. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1, enabling bidirectional flow. This valve is distinguished by its continuous-duty rated coil and hardened seat which ensure long life and minimal leakage. It offers flexibility with optional coil voltages and terminations, and the cartridges are interchangeable across different voltages. The unitized, molded coil design enhances durability and performance reliability. For environments requiring robust performance, there are optional waterproof E-Coils available that are rated up to IP69K. Additionally, it features an industry common cavity for easy integration and a compact size for convenient installation in space-constrained applications. The manual override option provides added operational flexibility, making this valve a versatile choice for various hydraulic system configurations.
The Hydraforce 5000033 (5000033) is a solenoid-operated, 2-way, normally closed, poppet-type screw-in hydraulic cartridge valve that excels in low leakage blocking and load holding applications. The SV0822 model operates as a check valve when de-energized, allowing fluid flow from port 1 to port 2 while blocking the reverse flow. Upon energization, the poppet lifts to facilitate flow from port 2 to port 1, enabling bidirectional flow. This valve is distinguished by its continuous-duty rated coil and hardened seat which ensure long life and minimal leakage. It offers flexibility with optional coil voltages and terminations, and the cartridges are interchangeable across different voltages. The unitized, molded coil design enhances durability and performance reliability. For environments requiring robust performance, there are optional waterproof E-Coils available that are rated up to IP69K. Additionally, it features an industry common cavity for easy integration and a compact size for convenient installation in space-constrained applications. The manual override option provides added operational flexibility, making this valve a versatile choice for various hydraulic system configurations.
Fluids:
Mineral based or synthetic hydraulic fluid with lubricating
properties
Fluid viscosity range:
7.4 to 420 cSt
Maximum operating contamination level:
20/18/14 PER ISO 4406
Unit weight:
0.10 kg (0.21 lb)
Internal wetted surface area:
81 cm² (12.5 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Flow Ratings Flow rating: See performance chart Maximum internal leakage: 3 drops/min Max at 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna-n seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With pllyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) With buna-n seals Ambient temperature: -40 to 70 °C (-40 to 160 °F) With buna-n seals |

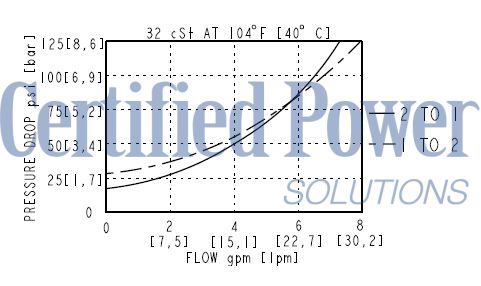

| Performance |  |

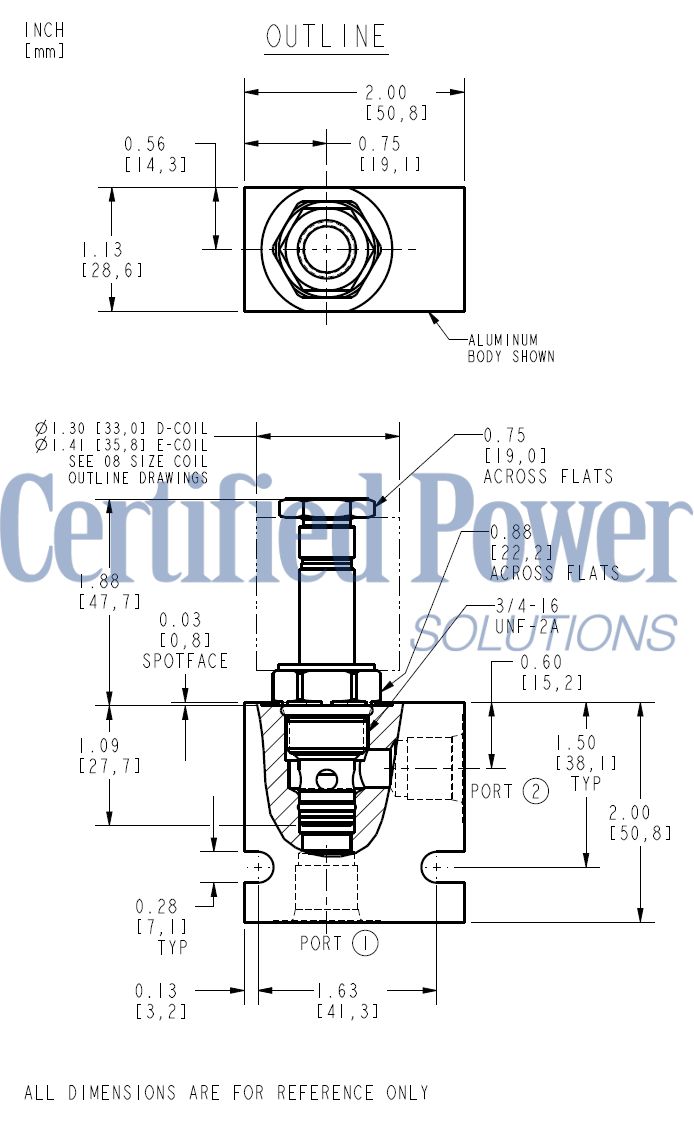

| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Coil nut torque: 5.4 to 6.8 N-m (4 to 5 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV08-22EG-H-J-L E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires, 18 inches long L 10EL/36 10 VDC, E-Coil, Dual Lead Wires, 36 inches long L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EG/Z 12 VDC, E-Coil, DIN 43650 with Zener Diode L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EJ/Z 12 VDC, E-Coil, AMP Jr. with Zener Diode L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DG 20 VDC, D-Coil, DIN 43650 L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 20ER/Z 20 VDC, E-Coil, Deutsch with Zener Diode L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires, 18 inches long L 24DL/36 24 VDC, D-Coil, Dual Lead Wires, 36 inches long L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DR/Z 24 VDC, D-Coil, Deutsch with Zener Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EG/Z 24 VDC, E-Coil, DIN 43650 with Zener Diode L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL/D 24 VDC, E-Coil, Dual Lead Wires with Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DG 36 VDC, D-Coil, DIN 43650 L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK08-2X-T
X = Seal option
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
Coils:
08 size D
coils
08 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
