The Flextral GX-10 (GX-10) is a high-performance hydraulic hose designed for a wide range of applications. This hose is part of the GX series and has an internal diameter of 5/8 inches, with a weight of 0.30 lbs per foot, making it both sturdy and flexible for various hydraulic systems. It can be ordered in lengths ranging from a minimum of 12 inches to a maximum of 1200 inches, catering to specific project requirements. The GX-10 features a coupling series EN and boasts an impressive maximum working pressure of 1885 psi, with a minimum burst pressure of 7510 psi. Its robust construction includes one braid of high-tensile steel wire reinforcement and a nitrile tube that meets or exceeds the specifications set by SAE 100R1AT, EN853 DIN 20022 1SN, and ISO 1436 Type 1 standards. The outer diameter measures at approximately 0.93 inches (23.70 mm), ensuring compatibility with standard fittings. Designed to handle extreme environments, the GX-10’s cover is made from black synthetic rubber that is oil, abrasion, and weather resistant. Additionally, it is MSHA approved for safety in mining applications. The hose operates efficiently within a temperature range from -40°C to +100°C (-40°F to +212°F), with intermittent use up to +120°C (+248°F). This makes it suitable for conveying petroleum-based hydraulic fluids, water, diesel fuels, lubricating oils, biodegradable hydraulic oil, and fire-resistant synthetic polyesters. Overall, the Flextral GX-10 offers reliability and versatility for professionals requiring a durable solution in fluid power applications across various sectors. Its comprehensive design specifications ensure optimal performance even under tough operating conditions.
The Flextral GX-10 (GX-10) is a high-performance hydraulic hose designed for a wide range of applications. This hose is part of the GX series and has an internal diameter of 5/8 inches, with a weight of 0.30 lbs per foot, making it both sturdy and flexible for various hydraulic systems. It can be ordered in lengths ranging from a minimum of 12 inches to a maximum of 1200 inches, catering to specific project requirements. The GX-10 features a coupling series EN and boasts an impressive maximum working pressure of 1885 psi, with a minimum burst pressure of 7510 psi. Its robust construction includes one braid of high-tensile steel wire reinforcement and a nitrile tube that meets or exceeds the specifications set by SAE 100R1AT, EN853 DIN 20022 1SN, and ISO 1436 Type 1 standards. The outer diameter measures at approximately 0.93 inches (23.70 mm), ensuring compatibility with standard fittings. Designed to handle extreme environments, the GX-10’s cover is made from black synthetic rubber that is oil, abrasion, and weather resistant. Additionally, it is MSHA approved for safety in mining applications. The hose operates efficiently within a temperature range from -40°C to +100°C (-40°F to +212°F), with intermittent use up to +120°C (+248°F). This makes it suitable for conveying petroleum-based hydraulic fluids, water, diesel fuels, lubricating oils, biodegradable hydraulic oil, and fire-resistant synthetic polyesters. Overall, the Flextral GX-10 offers reliability and versatility for professionals requiring a durable solution in fluid power applications across various sectors. Its comprehensive design specifications ensure optimal performance even under tough operating conditions.

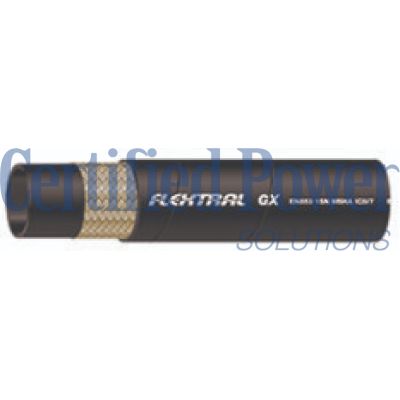

GX 1SN One Wire Braid Hose
Meets or exceeds the requirements of SAE 100R1AT-EN853 DIN 20022 1SN-ISO 1436 Type 1.
Tube: Nitrile
Reinforcement: One braid of high-tensile steel wire
Cover: Black, oil, abrasion and weather resistant synthetic rubber, MSHA approved
Temperature: -40°C to +100°C (-40°F to +212°F), intermittent use up to +120°C (+248°F)
Packaging: 3⁄16” - 1” Reels, 11⁄4” - 2” Coils
Application: Petroleum based hydraulic fluids, gasoline, water, diesel fuels and lubricating oils, biodegradeable hydraulic oil, fire resistant synthetic polyesters.
| PART NUMBER | HOSE I.D. | HOSE O.D. | MAX W.P. | MIN. BURST PRESSURE | MIN. BEND RADIUS | WEIGHT | ONE PIECE | ||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | (mm) | (psi) | (psi) | (in) | (mm) | (lbs/ft) | COUPLINGS | |
| GX-10 | 5⁄8 | 0.93 | 23.70 | 1885 | 7510 | 8 | 200.00 | 0.30 | coupling_GX |
