SUN HYDRAULICS
SANDWICH BODY
ZWW
- SUN HYDRAULICS
- Material:ZWW
- Summary:Manifold
Due to extremely high demand, please call 888-905-7411 for availability
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

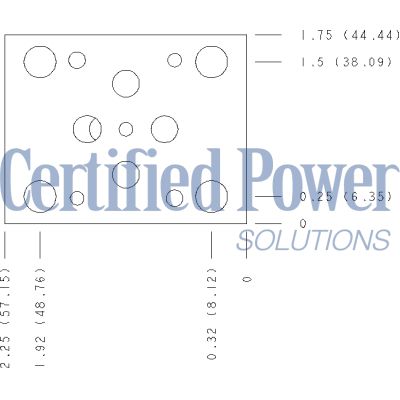

The Sun Hydraulics ZWW (Material Number: ZWW) is a versatile sandwich manifold designed for seamless integration into hydraulic systems. With an ISO 03 interface and a stack height of 0.99 inches (25 mm), this manifold is engineered for compact applications where space efficiency is crucial. It features multiple tap options in the manifold, allowing connections at P and A, P and B, or T and A, T and B, enhancing its adaptability in various system configurations. The ZWW model accommodates port sizes of 1/4 NPTF, ensuring compatibility with standard hydraulic components. Constructed from 6061-T651 aluminum, the manifold offers excellent corrosion resistance without the need for anodizing, as it naturally withstands harsh environments effectively. This choice of material also contributes to its durability while maintaining a lightweight profile, making it suitable for mobile or stationary applications where weight considerations are important. The design features of the Sun Hydraulics ZWW include a profiled boss on the ends of the sandwich manifolds, which not only provides an aesthetic appeal but also ensures precise alignment during assembly. This design element facilitates easy stacking with other sandwich valves while maintaining dry sealing surfaces to prevent leakage through o-rings acting as pumps. This manifold is particularly suited for systems operating under pressures up to 3000 psi (210 bar), taking into account the inherent limitations of aluminum materials in high-pressure environments. Its robust construction and flexible connection options make it ideal for use in complex hydraulic circuits requiring reliable flow control and distribution. Overall, the Sun Hydraulics ZWW offers a practical solution for engineers seeking efficient space utilization combined with reliable performance in hydraulic systems across various applications.
The Sun Hydraulics ZWW (Material Number: ZWW) is a versatile sandwich manifold designed for seamless integration into hydraulic systems. With an ISO 03 interface and a stack height of 0.99 inches (25 mm), this manifold is engineered for compact applications where space efficiency is crucial. It features multiple tap options in the manifold, allowing connections at P and A, P and B, or T and A, T and B, enhancing its adaptability in various system configurations. The ZWW model accommodates port sizes of 1/4 NPTF, ensuring compatibility with standard hydraulic components. Constructed from 6061-T651 aluminum, the manifold offers excellent corrosion resistance without the need for anodizing, as it naturally withstands harsh environments effectively. This choice of material also contributes to its durability while maintaining a lightweight profile, making it suitable for mobile or stationary applications where weight considerations are important. The design features of the Sun Hydraulics ZWW include a profiled boss on the ends of the sandwich manifolds, which not only provides an aesthetic appeal but also ensures precise alignment during assembly. This design element facilitates easy stacking with other sandwich valves while maintaining dry sealing surfaces to prevent leakage through o-rings acting as pumps. This manifold is particularly suited for systems operating under pressures up to 3000 psi (210 bar), taking into account the inherent limitations of aluminum materials in high-pressure environments. Its robust construction and flexible connection options make it ideal for use in complex hydraulic circuits requiring reliable flow control and distribution. Overall, the Sun Hydraulics ZWW offers a practical solution for engineers seeking efficient space utilization combined with reliable performance in hydraulic systems across various applications.
Body Type | SandwichSandwich |
Interface | ISO 03ISO 03 |
Body Features | Tap in manifold - P and A or P and B or T and A or T and BTap in manifold - P and A or P and B or T and A or T and B |
Stack Height | .99 in.25 mm |
Open Cavities | 00 |
Port Size | 1/4" NPTF1/4" NPTF |
Show FAQ
Additional Resources
- Sun Sandwich Bodies Interchangeable with Bosch and Others
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Manufacturing Sun Cartridge Cavities
- Mounting and Assembly of Sandwich Bodies
- Sun's Floating Style Screw-In Cartridge
- Sun Model Code Explanation; 999-901-334
- Fluid and Temperature Recommendations
- Custom Integrated Packages from Sun
- QuickDesign & SunDesign: Sun's 3- & 5-Axis Solutions
- Manifolds: Materials of Construction
Notes:
- Stack height value in technical data table includes seal retainer plate.
- Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
