SUN HYDRAULICS
LINE MOUNT BODY
ZTC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

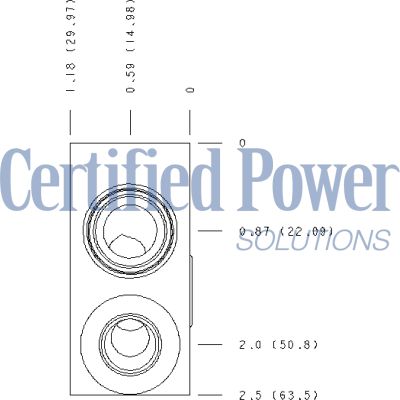

The Sun Hydraulics ZTC (Material Number: ZTC) is a line mount manifold designed for hydraulic systems, featuring a direct mount and cross pilot configuration. This model is built to accommodate SAE 6 port sizes, ensuring compatibility with standard hydraulic fittings. The manifold has been meticulously engineered with specific mounting dimensions, including a .34 in. (8.6 mm) mounting hole diameter and a .50 in. (12.7 mm) counterbore diameter, supporting through-hole installations with a depth of .25 in. (6.4 mm). It includes 22 mounting holes and is designed for one open cavity using the T-11A cavity type. Constructed from 6061 T651 aluminum, the ZTC manifold offers high corrosion resistance without the need for anodizing, which can reduce fatigue life by up to 50%. This material choice ensures durability while maintaining cost-effectiveness and availability in various shapes and sizes. The design considerations allow for efficient fluid transfer within hydraulic systems while maintaining structural integrity under pressures up to 3000 psi (210 bar). This manifold serves as a critical component in hydraulic applications where reliable fluid management and system integration are required. Its robust construction makes it suitable for various industrial uses where pressure management and system compatibility are crucial.
