SUN HYDRAULICS
RELIEF CART
RPGELCV
$103.70
- SUN HYDRAULICS
- Material:RPGELCV
- Model:RPGE-LCV
- Summary:Cartridge
Quantity in stock: 42
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

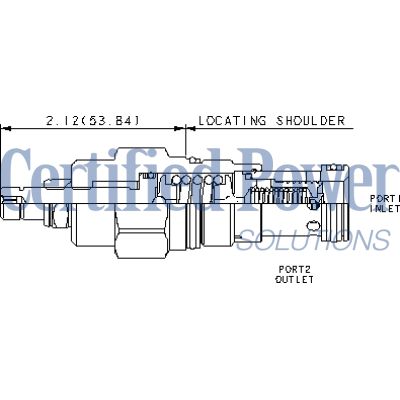

The Sun Hydraulics RPGELCV (Material Number: RPGELCV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve quickly opens and closes to manage pressure spikes, although this speed comes at the cost of smooth operation. When the inlet port 1 reaches the designated pressure setting, the valve opens to tank port 2, throttling flow to limit further pressure increase. It offers low pressure rise versus flow and rapid response times with typical response time around 2 milliseconds. The RPGELCV is interchangeable with other 2-port relief cartridges of the same frame size and flow path and can handle a maximum operating pressure of 5000 psi (350 bar). This cartridge is suitable for use in cross-port relief circuits but not recommended for load-holding applications due to spool leakage. The main stage orifice is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability. Backpressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. The cartridge is equipped with EPDM seals for compatibility with phosphate ester fluids; contact with petroleum-based fluids can damage these seals. Featuring Sun's floating style construction, it minimizes internal binding risks due to installation torque or machining variations. With a capacity of up to 50 gpm (200 L/min), adjustments are made via an internal hex screw with five clockwise turns increasing the setting. The valve hex size measures at 1-1/8 inches (28.6 mm) and requires an installation torque between 45 - 50 lbf ft (61 - 68 Nm). Model weight stands at .50 lb (.25 kg), making it compact yet effective for high-pressure hydraulic applications.
The Sun Hydraulics RPGELCV (Material Number: RPGELCV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve quickly opens and closes to manage pressure spikes, although this speed comes at the cost of smooth operation. When the inlet port 1 reaches the designated pressure setting, the valve opens to tank port 2, throttling flow to limit further pressure increase. It offers low pressure rise versus flow and rapid response times with typical response time around 2 milliseconds. The RPGELCV is interchangeable with other 2-port relief cartridges of the same frame size and flow path and can handle a maximum operating pressure of 5000 psi (350 bar). This cartridge is suitable for use in cross-port relief circuits but not recommended for load-holding applications due to spool leakage. The main stage orifice is safeguarded by a 150-micron stainless steel screen, ensuring durability and reliability. Backpressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. The cartridge is equipped with EPDM seals for compatibility with phosphate ester fluids; contact with petroleum-based fluids can damage these seals. Featuring Sun's floating style construction, it minimizes internal binding risks due to installation torque or machining variations. With a capacity of up to 50 gpm (200 L/min), adjustments are made via an internal hex screw with five clockwise turns increasing the setting. The valve hex size measures at 1-1/8 inches (28.6 mm) and requires an installation torque between 45 - 50 lbf ft (61 - 68 Nm). Model weight stands at .50 lb (.25 kg), making it compact yet effective for high-pressure hydraulic applications.
Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.
- All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
- Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Not suitable for use in load holding applications due to spool leakage.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-3A |
| Series | 2 |
| Capacity | 50 gpm200 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 2 ms2 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Pilot-Operated, Balanced Poppet, Anti Shock Reliefs
- CavitySaver multi-function valves deliver single-cartridge solutions
- 'Soft' Relief Eliminates Pressure Spikes
- Tri-Grip Handknob Now Offered From Sun as a Standard Control Option
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Introduces 'Hybrid' Valves
- CE/TÜV Certified Pressure Relief Valves
- Pressure Relief and Regulating Cartridge Valve Technical Tips
- Pilot Operated, Balanced Poppet Relief Valves
- Sun Expands Corrosion-Resistant Solutions
- Manufacturing Sun Cartridge Cavities
- Pressure Relief and Regulating Valves
- Sun Model Code Explanation; 999-901-334
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Cavity Information (S-171) and Tooling
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
