SUN HYDRAULICS
RELIEF CART
RPGELCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

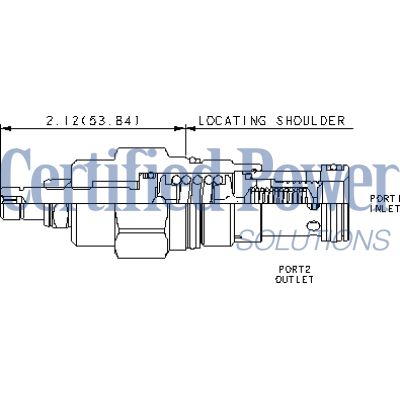

The Sun Hydraulics RPGELCN (RPGELCN) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve opens quickly to throttle flow and limit pressure rise when the inlet port reaches the set pressure. The valve features a low pressure rise versus flow and operates with rapid response times, typically around 2 milliseconds. It is suitable for use in cross port relief circuits, accepting maximum pressure at port 2. However, it is not recommended for load-holding applications due to spool leakage. The main stage orifice is safeguarded by a 150-micron stainless steel screen, and the valve's construction minimizes internal part binding during installation. The RPGELCN supports a maximum operating pressure of 5000 psi (350 bar) and has a capacity of 50 gpm (200 L/min). Back pressure on the tank port directly adds to the valve setting at a 1:1 ratio, and cartridges with EPDM seals are compatible with phosphate ester fluids but should avoid petroleum-based substances. The valve's hex size is 1-1/8 inches (28.6 mm), with installation torque ranging from 45 to 50 lbf-ft (61 to 68 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut hex size is 9/16 inches (15 mm) with a torque requirement of 80 to 90 lbf-in (9 to 10 Nm). With its compact design weighing just .50 lb (.25 kg), this relief cartridge offers reliable performance for various hydraulic applications requiring quick response times and efficient pressure management.
