SUN HYDRAULICS
RED-REL CART
PRDBLEN

  • SUN HYDRAULICS
  • Material:PRDBLEN
  • Model:PRDB-LEN
  • Summary:Cartridge

Due to extremely high demand, please call 888-905-7411 for availability

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

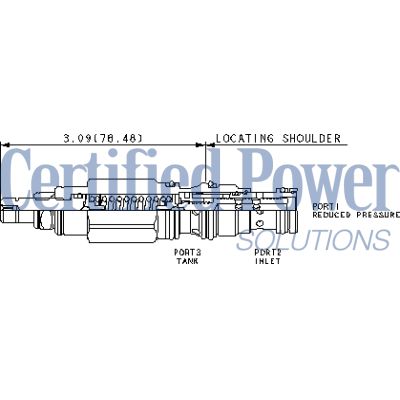

The Sun Hydraulics PRDBLEN (Material Number: PRDBLEN) is a direct-acting, pressure reducing/relieving valve designed to reduce high primary pressure at inlet port 2 to a consistent reduced pressure at port 1, while providing full-flow relief from port 1 to tank port 3. This valve features a damped construction for stable operation, allowing the use of high reduced pressure. All three-port pressure reducing and relieving cartridges are physically interchangeable within the same frame size, sharing the same flow path and cavity. When considering mounting configurations, it's recommended to use a full capacity return line for port 3 with reducing/relieving cartridges. Full reverse flow from reduced pressure port 1 to inlet port 2 may cause the main spool to close; hence, if reverse free flow is required in the circuit, adding a separate check valve is advisable. The PRDBLEN is suitable for accumulator circuits due to its absence of pilot control flow, resulting in reduced secondary circuit leakage. Its direct-acting concept ensures highly reliable operation in contaminated systems, especially under dead-headed conditions. Unlike pilot-operated versions, these valves exhibit a transitional step between reducing and relieving modes equal to 5% of the high end of the adjustment range, independent of valve setting. This characteristic may render them unsuitable for counterbalancing applications. The direct-operated version offers superior dynamic response compared to equivalent pilot-operated models. Pressure at port 3 should not exceed 5000 psi (350 bar) as it is directly additive to the valve setting at a 1:1 ratio. Leakage specified in technical data occurs out of port 3 with supply pressure at 2000 psi (140 bar) and valve set at mid-range; this leakage varies proportionally with pressure differential and inversely with viscosity expressed in centistokes. The valve incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or cavity/cartridge machining variations.

Direct-acting, pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). These valves incorporate a damped construction for stable operation allowing the use of high reduced pressure.

  • All three-port pressure reducing and reducing/relieving cartridges are physically interchangeable (i.e. same flow path, same cavity for a given frame size). When considering mounting configurations, it is sometimes recommended that a full capacity return line (port 3) be used with reducing/relieving cartridges.
  • Full reverse flow from reduced pressure (port 1) to inlet (port 2) may cause the main spool to close. If reverse free flow is required in the circuit, consider adding a separate check valve to the circuit.
  • All spring ranges are tested for correct operation with 5000 psi (350 bar) inlet pressure.
  • Suitable for accumulator circuits since the absence of pilot control flow results in reduced secondary circuit leakage.
  • Direct acting concept provides highly reliable operation in contaminated systems, especially at dead headed conditions.
  • Unlike pilot operated versions, direct acting valves exhibit a transitional step between reducing and relieving modes. This step equals 5% of the high end of the adjustment range, independent of the valve setting. Therefore, these valves may not be suitable for counterbalancing applications.
  • Direct operated version offers superior dynamic response compared to equivalent pilot operated models.
  • Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
  • Leakage specified in Technical Data is out of port 3 with a supply pressure of 2000 psi (140 bar) and the valve set at mid range. This leakage is directly proportional to pressure differential and inversely proportional to viscosity expressed in centistokes.
  • W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

CavityT-11A
Series1
Capacity10 gpm40 L/min.
Factory Pressure Settings Established atblocked control port (dead headed)blocked control port (dead headed)
Maximum Operating Pressure5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt)2 in³/min.30 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting55
Valve Hex Size7/8 in.22,2 mm
Valve Installation Torque30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size5/32 in.4 mm
Locknut Hex Size9/16 in.15 mm
Locknut Torque80 - 90 lbf in.9 - 10 Nm
Model Weight.30 lb0,15 kg
Seal kit - CartridgeViton: 990-011-006

Show FAQ

Additional Resources



Notes:
  • For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
