SUN HYDRAULICS
NEEDLE CARTRDGE
NFABKXN
$35.90
- SUN HYDRAULICS
- Material:NFABKXN
- Model:NFAB-KXN
- Summary:Cartridge
Quantity in stock: 15

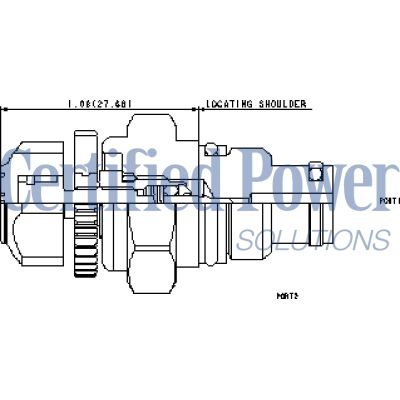

Two-port, pilot-stage needle valves are fully adjustable devices used to regulate pilot flow in a main-stage valve or to meter in/out flow in low flow applications. These cartridges are designed for pilot flow applications and utilize Sun's T-8A cavity so they can be used in conjunction with Sun's pilot-operated, main-stage valves.
- Utilizes the Sun T-8A 2-port cavity making it the ideal choice to use in conjunction with Sun's main stage pilot or vent-to-operate cartridges. Separate pilot lines are eliminated and only one cavity needs to be machined to accommodate both the control and primary function. Note: All 2-position, 2-way pilot stage control cartridges utilize the same cavity and are physically interchangeable. Functionality is the only consideration.
- Note: The main stage valve should first be installed to the correct torque value followed by the T-8A pilot control section into the main stage valve to its required torque value.
- Ports 1 and 2 may be pressured to 5000 psi (350 bar).
- Needle adjusts from fully closed to fully open in three complete turns resulting in extremely fine resolution.
- Adjustment mechanism equipped with locking device to maintain consistent orifice dia/flow rate.
- Leakage rate at shutoff is less than 1 drop/min.
Cavity | T-8A |
Series | P |
Capacity | .2 gpm (.035 inch)0,8 L/min. (0,9 mm) |
Maximum Operating Pressure | 5000 psi350 bar |
Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 33 |
Effective Orifice Size | .035 in.0,9 mm |
Valve Hex Size | 7/8 in.22,2 mm |
Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
Seal kit - Cartridge | Viton: 990-008-006 |
Show FAQ
