SUN HYDRAULICS
FLOW CTRL CART
FDCBLAN
$123.00
- SUN HYDRAULICS
- Material:FDCBLAN
- Model:FDCB-LAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics FDCBLAN (FDCBLAN) is a fully adjustable, pressure-compensated flow control valve with a reverse-flow check, designed for precise flow regulation in both meter-in and meter-out applications. This valve is particularly effective in systems experiencing wide pressure fluctuations, providing infinite adjustability from nearly closed to maximum flow. It features an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. The FDCBLAN model is part of the Series 2 cartridges, which are physically and functionally interchangeable with other 2-port flow control cartridges of the same frame size. However, note that cartridge extension dimensions may vary from the mounting surface. The valve's balanced adjustment mechanism ensures easy adjustments even under high-pressure conditions. Its sharp-edged orifice design minimizes flow variations due to changes in fluid viscosity. With a minimum leakage rate of .2 gpm (0.8 L/min) when fully shut off, this model is efficient for controlling hydraulic fluid flows. The FDCBLAN can handle capacities up to 12 gpm (45 L/min) and operates at a maximum pressure of 5000 psi (350 bar). Its adjustment range spans 5-5 counterclockwise turns from fully closed to fully open. This model has specific installation requirements: a cavity size of T-5A, a valve hex size of 1-1/8 inches (28.6 mm), and requires an installation torque between 45-50 lbf ft (61-68 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut requires a hex size of 9/16 inches (15 mm) and torque between 80-90 lbf in (9-10 Nm). Weighing .60 lb (.30 kg), it is compatible with Viton seal kits for enhanced durability and resistance against phosphate ester fluids; however, exposure to petroleum-based fluids should be avoided as they can damage EPDM seals used within the system.
The Sun Hydraulics FDCBLAN (FDCBLAN) is a fully adjustable, pressure-compensated flow control valve with a reverse-flow check, designed for precise flow regulation in both meter-in and meter-out applications. This valve is particularly effective in systems experiencing wide pressure fluctuations, providing infinite adjustability from nearly closed to maximum flow. It features an integral high-capacity check valve that allows unrestricted flow from port 2 to port 1. The FDCBLAN model is part of the Series 2 cartridges, which are physically and functionally interchangeable with other 2-port flow control cartridges of the same frame size. However, note that cartridge extension dimensions may vary from the mounting surface. The valve's balanced adjustment mechanism ensures easy adjustments even under high-pressure conditions. Its sharp-edged orifice design minimizes flow variations due to changes in fluid viscosity. With a minimum leakage rate of .2 gpm (0.8 L/min) when fully shut off, this model is efficient for controlling hydraulic fluid flows. The FDCBLAN can handle capacities up to 12 gpm (45 L/min) and operates at a maximum pressure of 5000 psi (350 bar). Its adjustment range spans 5-5 counterclockwise turns from fully closed to fully open. This model has specific installation requirements: a cavity size of T-5A, a valve hex size of 1-1/8 inches (28.6 mm), and requires an installation torque between 45-50 lbf ft (61-68 Nm). The adjustment screw has an internal hex size of 5/32 inches (4 mm), while the locknut requires a hex size of 9/16 inches (15 mm) and torque between 80-90 lbf in (9-10 Nm). Weighing .60 lb (.30 kg), it is compatible with Viton seal kits for enhanced durability and resistance against phosphate ester fluids; however, exposure to petroleum-based fluids should be avoided as they can damage EPDM seals used within the system.
Fully adjustable, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.

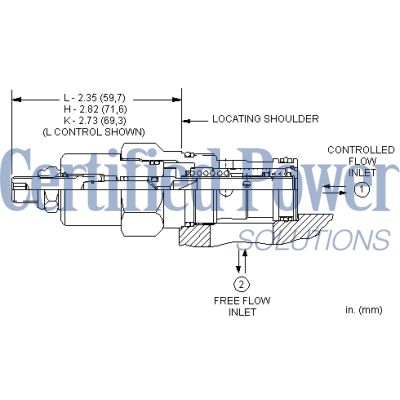

- All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
- A balanced adjustment mechanism allows for easy adjustment even at high pressures.
- The sharp-edged orifice design minimizes flow variations due to viscosity changes.
- Minimum leakage is .2 gpm (0,8 L/min) when the adjustment mechanism is turned to the shut-off position.
- Cartridges with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
| Cavity | T-5A |
| Series | 2 |
| Capacity | 12 gpm45 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Adjustment - Number of Counterclockwise Turns - Fully Closed to Fully Open | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .60 lb0,30 kg |
| Seal kit - Cartridge | Viton: 990-203-006 |
