SUN HYDRAULICS
CARTRIDGE
DRBMLEN


$126.40
  • SUN HYDRAULICS
  • Material:DRBMLEN
  • Model:DRBM-LEN
  • Summary:Cartridge

Quantity in stock: 2

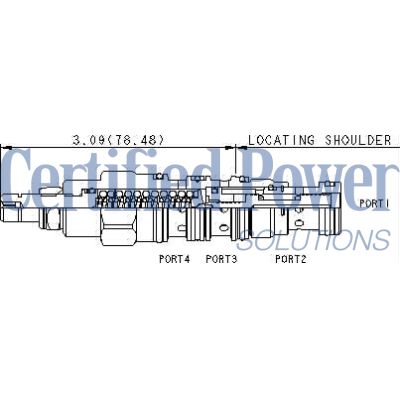

Normally open, direct-acting, 2-way directional cartridges are switching devices typically used in moderate flow circuits. They can be used by themselves or to actuate larger pilot operated directional cartridges or logic cartridges. The valve shifts when the pressure differential between port 1 and port 4 exceeds the setting.

  • Port 3 can be used as a work port.
  • The flow path between port 2 and port 3 is bidirectional.
  • Because of their direct-acting design, these cartridges feature low internal leakage and low pilot flow consumption.
  • Direct-acting and pilot-operated versions of these valves are interchangeable. They fit the same cavities and have the same flow paths.
  • Pressure at port 4 is directly additive to the setting of the valve.
  • This valve is not bistable; it is capable of modulating between the two positions shown.
  • Maximum pressure at port 3 should be limited to 3000 psi (210 bar). This is due to fatigue strength limits not hydraulic operating limits.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity T-21A
Series 1
Capacity 7 gpm28 L/min.
Factory Pressure Settings Established at 4 gpm15 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 2 in³/min.30 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting 55
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Adjustment Screw Internal Hex Size 5/32 in.4 mm
Locknut Hex Size 9/16 in.15 mm
Locknut Torque 80 - 90 lbf in.9 - 10 Nm
Model Weight .55 lb0,25 kg
Seal kit - Cartridge Viton: 990-021-006
