SUN HYDRAULICS
DIRECTNAL CART
DMDAXBV


$92.40
  • SUN HYDRAULICS
  • Material:DMDAXBV
  • Model:DMDA-XBV
  • Summary:Cartridge

Quantity in stock: 18

This solenoid-operated 3-way, 2-position cartridge is a direct-acting, balanced spool directional valve.

  • The solenoid tube assembly is fatigue rated for 5000 psi (350 bar) service.
  • Spools B and R are closed in the transition between their two positions. This results in a higher performance limit at the expense of lower capacity. When used as pilot controls, where capacity is not a factor, the closed transition will provide faster and more consistent response times.
  • This valve is direct actuated and requires no minimum hydraulic pressure for operation.
  • On models equipped with the D or L control, the detent mechanism in the manual override is meant for temporary actuation. The D, L and T manual control assembly has a mechanical life expectancy of approximately 7,000 cycles.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • This valve utilizes a wet armature design. This means that the working fluid surrounds the armature and is exposed to the heat generated by the coil. This can be a factor if the coil is energized for long periods of time. Some fluids, notably water/glycol mixtures, break down at these temperatures over time and form varnishes that will affect the function of the cartridge.
  • Coils are interchangeable with other Sun Series 1 solenoid products and can be mounted on the tube in either direction.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity T-11A
Series 1
Capacity 12 gpm45 L/min.
Maximum Operating Pressure 5000 psi350 bar
Response Time - Typical 50 ms50 ms
Maximum Valve Leakage at 110 SUS (24 cSt) 5 in³/min.@3000 psi80 cc/min.@210 bar
Switching Frequency 15000 cycles/hr15000 cycles/hr
Manual Override Force Requirement 5 lbs/1000 psi @ Port 133 N/100 bar @ Port 1

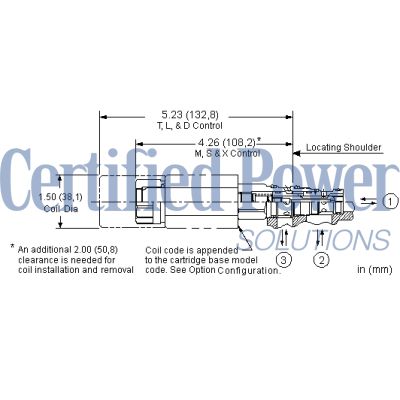

Manual Override Stroke .10 in.2,5 mm
Solenoid Tube Diameter .75 in.19 mm
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .60 lb0,30 kg
Seal kit - Cartridge Viton: 990-411-006
Seal and nut kit - Coil Viton: 990-770-006Viton: 990-770-006
