SUN HYDRAULICS
CHECK CARTRIDGE
CXBAXAN

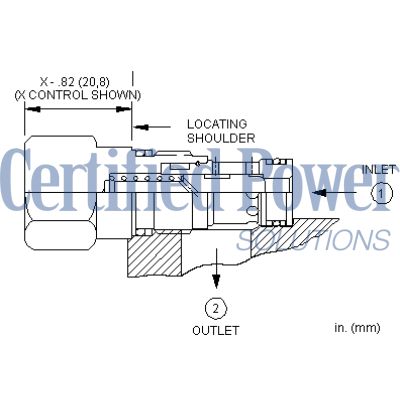

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.

• Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
• Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
• Will accept 5000 psi (350 bar) at ports 1 and 2.
• Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
• Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
