SUN HYDRAULICS
SHUTTLE CART
CSABXXN


$29.40
  • SUN HYDRAULICS
  • Material:CSABXXN
  • Model:CSAB-XXN
  • Summary:Cartridge

Quantity in stock: 0

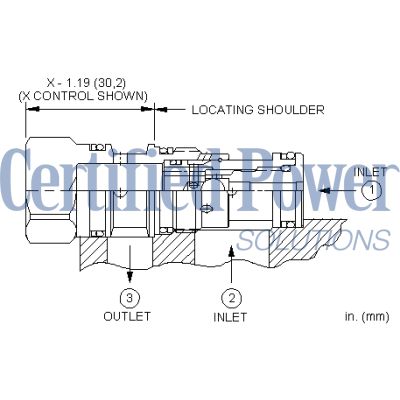

The single ball shuttle connects the higher of two work ports to the signal or common port. The signal is sensed at port 3.

  • Shuttle cartridges feature hardened steel balls and seats for excellent wear characteristics and contamination tolerance.
  • The single ball allows for the decay of the pressure signal when both load ports drop to a lower pressure.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity T-11A
Series 1
Capacity 2.5 gpm10 L/min.
Maximum Operating Pressure 5000 psi350 bar
Maximum Valve Leakage at 110 SUS (24 cSt) 5 drops/min.0,3 cc/min.
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 30 - 35 lbf ft41 - 47 Nm
Model Weight .20 lb0,10 kg
Seal kit - Cartridge Viton: 990-011-006
