HYDRAFORCE
5601400
$42.75 USD
- HYDRAFORCE
- Material:5601400
- Model:RV08-22H-0-N-04/ RELIEF VALVE
- Summary:RELIEF VALVE CARTRIDGE DIRECT ACTING DIFFERENTIAL AREA POPPET TYPE
Due to extremely high demand, please call 800-289-1330 for availability

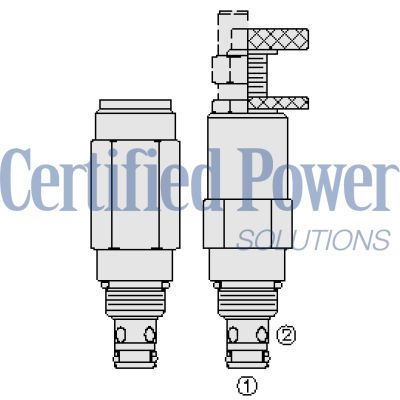

The Hydraforce 5601400 (5601400) is a screw-in, cartridge-style, direct-acting, differential area poppet type hydraulic relief valve designed for use as a pressure-limiting device in demanding hydraulic circuits. It is particularly suited for applications requiring low hysteresis and minimal internal leakage. The RV08-22X model operates by blocking flow from port 2 to port 1 until the pressure at port 2 is sufficient to unseat the poppet. This valve features adjustments that cannot be backed out, ensuring stability and reliability in operation. It offers a variety of pressure adjustment options, including non-adjustable factory presets, with positive stops in options A, B, and C to prevent the springs from going solid. The valve can also be equipped with an optional bi-directional pressure seal for additional functionality. Constructed with a hardened poppet and cage, it promises long-lasting performance and durability. With optional spring ranges up to 248 bar (3600 psi), this compact valve provides smooth response to pressure surges and fits into industry-common cavities, making it a versatile component in hydraulic systems.
Unit weight:
0.17 kg (0.37 lb)
A
0.19 kg (0.42 lb)
B
0.22 kg (0.47 lb)
C l
0.16 kg (0.35 lb)
F h
Internal wetted surface area:
112 cm² (17.4 in²)
A b c l
122 cm² (19.2 in²)
F h
| Ratings | Pressure Ratings Pressure rating: 248.2 bar (3600 psi) Proof pressure: 496.4 bar (7000 psi) Burst pressure: 1037.7 bar (16168 psi) Relief pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) Reseat pressure: Nominal 90% of crack Flow Ratings Flow rating: 30.3 lpm (8 gpm) At max pressure Maximum internal leakage: 0.25 ml/min (5 drops/min) Max to 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 25.8 to 28.5 N-m (19 to 21 ft-lb) Maximum allowable torque: 40.7 N-m (30 ft-lb) Plug torque: 33.9 to 36.7 N-m (25 to 27 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION RV08-22F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J NC Buna-N for Crossover Applications J V Fluorocarbon J VC Fluorocarbon for Crossover Applications J P Polyurethane J PC Polyurethane for Crossover Applications J U PPDI Urethane R Spring R 04 3.4 to 27.6 bar (50 to 400 psi) Spring Range R 07 6.9 to 48.3 bar (100 to 700 psi) Spring Range R 13 10.3 to 89.6 bar (150 to 1300 psi) Spring Range R 26 17.2 to 248.2 bar (250 to 3600 psi) Spring Range R 35 17.2 to 248.2 bar (250 to 3600 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
Seal kit:
SK08-2X-T
X=seal options
SK08-2X-M
X=seal options
Seal kit installation instructions
Housings:
Available
08-2w valve bodies
