HYDRAFORCE
5029424
$148.50 USD
- HYDRAFORCE
- Material:5029424

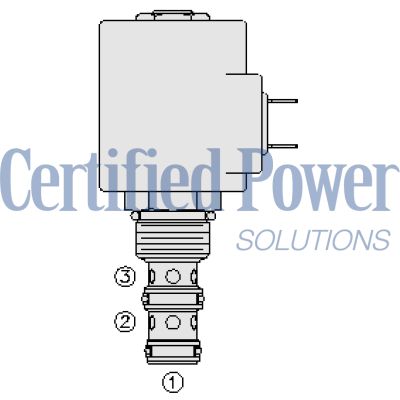

- Model:SV10-31M-6T-N-24DS SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE SPOOL, 3 WAY
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5029424 (5029424) is a solenoid-operated, 3-port, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in diverse applications. This valve features a continuous-duty rated coil and a hardened precision spool and cage that ensure longevity and reliability under continuous operation. Its efficient wet-armature construction allows for enhanced performance, while the unitized, molded coil design contributes to its durability. The Hydraforce 5029424 offers versatility with optional coil voltages and terminations to accommodate different system requirements. The manual override option provides additional control flexibility, allowing for manual operation of the valve in the event of an electrical power failure. Furthermore, all ports on this valve can withstand full pressurization, enhancing its suitability for various hydraulic circuits. Additionally, this model boasts optional waterproof E-Coils that are rated up to IP69K, making it an excellent choice for applications exposed to harsh environmental conditions such as water and dust. The industry common cavity design of the Hydraforce 5029424 ensures compatibility with standard cavities, simplifying installation and replacement processes. This combination of features makes the Hydraforce 5029424 an ideal solution for a wide range of hydraulic system applications requiring reliable directional control of fluid flow.
The Hydraforce 5029424 (5029424) is a solenoid-operated, 3-port, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in diverse applications. This valve features a continuous-duty rated coil and a hardened precision spool and cage that ensure longevity and reliability under continuous operation. Its efficient wet-armature construction allows for enhanced performance, while the unitized, molded coil design contributes to its durability. The Hydraforce 5029424 offers versatility with optional coil voltages and terminations to accommodate different system requirements. The manual override option provides additional control flexibility, allowing for manual operation of the valve in the event of an electrical power failure. Furthermore, all ports on this valve can withstand full pressurization, enhancing its suitability for various hydraulic circuits. Additionally, this model boasts optional waterproof E-Coils that are rated up to IP69K, making it an excellent choice for applications exposed to harsh environmental conditions such as water and dust. The industry common cavity design of the Hydraforce 5029424 ensures compatibility with standard cavities, simplifying installation and replacement processes. This combination of features makes the Hydraforce 5029424 an ideal solution for a wide range of hydraulic system applications requiring reliable directional control of fluid flow.
Unit weight:
0.18 kg (0.39 lb)
Internal wetted surface area:
158 cm² (24.5 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: 22.7 lpm (6 gpm) Maximum internal leakage: 164 ml/min (10 in³/min ) At from port 3 to 2 (valve energized); 207 bar (3000 psi) 82 ml/min (5 in³/min ) At from port 3 to 2 (valve de-energized) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-A31E-H-J-L-M A Position Sensor Option A 31 Standard A P31 Position Indicator Switch E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO |
Seal kit:
SK10-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
