HYDRAFORCE
5029423


$181.00 USD
  • HYDRAFORCE
  • Material:5029423
  • Model:SV12-20M-12T-N-12DL SOLENOID VALVE
  • Summary:SOLENOID CARTRIDGE VALVE POPPET, 2 WAY, NORMALLY CLOSED

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

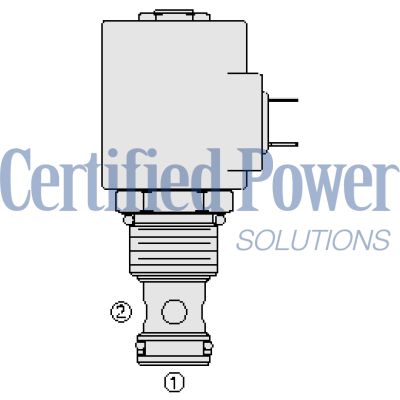

The Hydraforce 5029423 (5029423) is a solenoid-operated, 2-way, normally closed, poppet-type screw-in hydraulic cartridge valve. This model is engineered to function as a load holding or blocking valve in systems requiring minimal internal leakage. The operational mechanics of the SV1220X allow it to act as a check valve when de-energized, facilitating flow from port 1 to port 2 and blocking flow in the reverse direction. Upon energization, the poppet lifts to enable a flow path from port 2 to port 1, while severely restricting flow from port 1 to port 2. This valve features a continuous-duty rated coil and a hardened seat that ensures long life and maintains low leakage. It offers optional coil voltages and terminations for flexibility in application and installation. The efficient wet-armature construction enhances its performance, while the cartridges are designed to be voltage interchangeable for ease of use across different systems. The unitized, molded coil design contributes to its robustness and reliability in various operating conditions. Additionally, the SV1220X provides an optional manual override feature for improved control and handling during maintenance or unexpected operational adjustments. For environments requiring rigorous standards, there are optional waterproof E-Coils available that are rated up to IP69K, ensuring protection against ingress of dust and high-temperature high-pressure water jets. This model is also designed with a cost-effective cavity that aids in reducing overall installation costs while maintaining high efficiency and performance standards.

Unit weight: 0.25 kg (0.54 lb)
Blank
0.26 kg (0.57 lb)
M j y
0.67 kg (1.48 lb)
Including coil

Internal wetted surface area: 155 cm² (24.0 in²)
Blank
166 cm² (25.7 in²)
M j y

RatingsPressure Ratings
Pressure rating: 240 bar (3500 psi)

Proof pressure: 345 bar (5000 psi)

Burst pressure: 827 bar (12000 psi)

Flow Ratings
Flow rating: See performance chart

Maximum internal leakage: 3 drops/min
Max at 240 bar (3500 psi)

Temperature Ratings
Operating fluid temperature: -40 to 100 °C (-40 to 212 °F)
With buna N seals
-26 to 204 °C (-15 to 400 °F)
With fluorocarbon seals
-54 to 107 °C (-65 to 225 °F)
With polyurethane seals

Storage temperature: -40 to 70 °C (-40 to 160 °F)

Ambient temperature: -40 to 90 °C (-40 to 194 °F)

Other Ratings
Corrosion protection: 960 hr salt spray per ASTM b117 (gsv12-20x)
Operating ParametersFluids: Mineral based or synthetic hydraulic fluid with lubricating
properties

Fluid viscosity range: 7.4 to 420 cSt

Maximum operating contamination level: 18/16/13 per ISO 4406
Performancehttps://www.hydraforce.com/globalassets/product-images/sv12-20_perf_chrt_wsensor2022-02-24.gif

Installation SpecificationsCavity: VC12-2
12-size-2-way Cavities
Cartridge installation torque: 44.8 to 50.2 N-m (33 to 37 ft-lb)

Maximum allowable torque: 102 N-m (75 ft-lb)

Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb)

Orientation restriction: None
Order CodePOSITION CODE DESCRIPTION SV12-A20AE-H-J-L-M A Position Sensor Option A 20 Standard A P20A Position Indicator Switch with Resticted Flow E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO
https://www.hydraforce.com/globalassets/product-images/sv12-20_dim_dwg2022-02-24.gif


Seal kit: SK12-2X-T
X = seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
