HYDRAFORCE
5029381

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

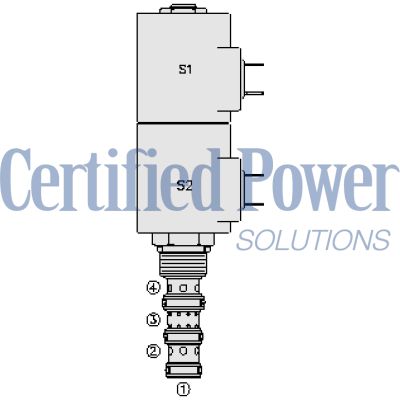

The Hydraforce SV10-47AM-0-N-12EY (5029381) is a highly versatile solenoid-operated, 4-port, 3-position, direct-acting spool type screw-in hydraulic cartridge valve designed for robust hydraulic system applications. This model efficiently manages the flow between ports in various configurations depending on its energized state. In its default de-energized state, it blocks cylinder ports while allowing flow from port 3 to port 1. Energizing coil 1 changes the flow path from port 3 to port 2 and from port 4 to port 1. Conversely, activating coil 2 permits flow from port 3 to port 4 and from port 2 to port 1, making it suitable for applications where work port flows are unequal due to cylinder ratios. The SV10-47AM-0-N-12EY is engineered for durability and performance with features like a continuous-duty rated solenoid, hardened precision spool and cage, and optional waterproof E-Coils rated up to IP69K. It supports various coil voltages and terminations and offers a manual override option. All ports can be fully pressurized, enhancing its adaptability across different hydraulic systems. This valve is designed for easy integration into industry-standard cavities (VC104) and can handle a wide range of operating parameters including temperatures from -40°C to +100°C with buna N seals, and up to +204°C with fluorocarbon seals. The unit's robust design allows it to withstand pressures up to 250 bar (3625 psi), with proof pressures up to 344 bar (5000 psi) and burst pressures reaching up to 779 bar (11,300 psi). Its internal wetted surface area measures approximately 245 cm², ensuring adequate interaction with hydraulic fluids which can range in viscosity from 7.4 to 420 cSt. In summary, the Hydraforce SV10-47AM-0-N-12EY offers high flexibility and reliability for controlling fluid power in various industrial hydraulic systems while maintaining ease of maintenance and integration into existing setups.
