  • Model:SV10-31M-8T-P-12DG SOLENOID VALVE

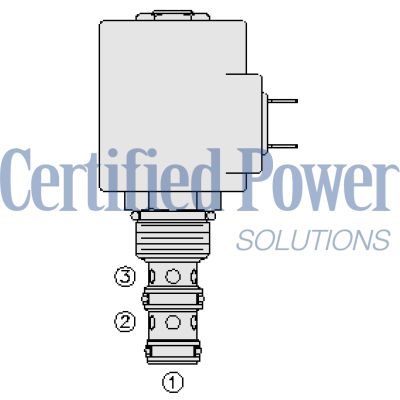

  • Summary:SOLENOID CARTRIDGE VALVE SPOOL, 3 WAY

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5029362P (5029362P) is a solenoid-operated, 3-port, direct acting, spool type, screw-in hydraulic cartridge valve designed for precision and durability in hydraulic systems. This valve features a continuous-duty rated coil, which ensures reliable operation under extended working periods. The hardened precision spool and cage enhance the longevity of the valve, making it suitable for rigorous applications. It offers optional coil voltages and terminations to accommodate diverse electrical requirements and installation environments. Efficient wet-armature construction contributes to the valve's robust performance by ensuring optimal magnetic force transmission. The design of the 5029362P allows all ports to be fully pressurized, enhancing its versatility in various hydraulic circuits. The cartridges are voltage interchangeable which provides flexibility in system design and upgrades. Additionally, the unitized, molded coil design of this model enhances structural integrity and reliability. A manual override option is available, providing an alternative control method in scenarios where electronic control is not feasible. For applications requiring enhanced protection against environmental conditions such as water and dust, optional waterproof E-Coils are available that are rated up to IP69K. This model also conforms to an industry common cavity configuration which facilitates easy installation or replacement without the need for extensive modifications to existing systems. The combination of these features makes the Hydraforce 5029362P a versatile and reliable choice for a wide range of hydraulic applications requiring precise control and durability.

Unit weight: 0.18 kg (0.39 lb)

Internal wetted surface area: 158 cm² (24.5 in²)

RatingsPressure Ratings
Pressure rating: 207 bar (3000 psi)

Proof pressure: 345 bar (5000 psi)

Burst pressure: 827 bar (12000 psi)

Flow Ratings
Flow rating: 22.7 lpm (6 gpm)

Maximum internal leakage: 164 ml/min (10 in³/min )
At from port 3 to 2 (valve energized); 207 bar (3000 psi)
82 ml/min (5 in³/min )
At from port 3 to 2 (valve de-energized) 207 bar (3000 psi)

Temperature Ratings
Operating fluid temperature: -40 to 100 °C (-40 to 212 °F)
With buna N seals
-26 to 204 °C (-15 to 400 °F)
With fluorocarbon seals
-54 to 107 °C (-65 to 225 °F)
With polyurethane seals

Storage temperature: -40 to 70 °C (-40 to 160 °F)

Ambient temperature: -40 to 70 °C (-40 to 160 °F)
Operating ParametersFluids: Mineral based or synthetic hydraulic fluid with lubricating
properties

Fluid viscosity range: 7.4 to 420 cSt

Maximum operating contamination level: 18/16/13 per ISO 4406

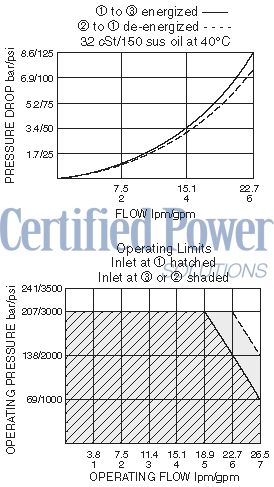

Performancehttps://www.hydraforce.com/globalassets/product-images/sv10-31_perf_chrt2022-02-24.gif

Installation SpecificationsCavity: VC10-3
10-size-3-way Cavities
Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb)

Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb)

Orientation restriction: None
Order CodePOSITION CODE DESCRIPTION SV10-A31E-H-J-L-M A Position Sensor Option A 31 Standard A P31 Position Indicator Switch E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO

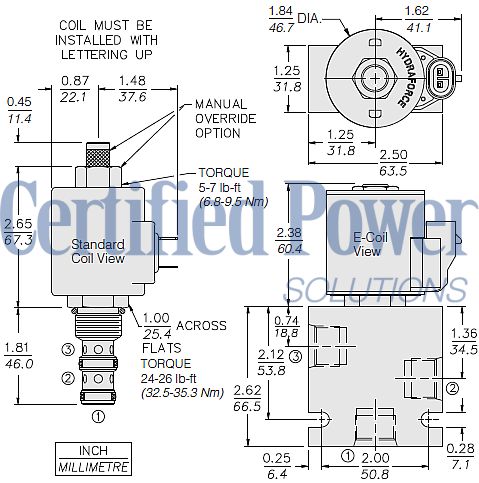

https://www.hydraforce.com/globalassets/product-images/sv10-31_dim_dwg2022-02-24.gif


Seal kit: SK10-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
