- Model:SV10-23K-6T-N-12DG SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE POPPET, 2 WAY, NORMALLY OPEN
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce SV10-23K-6T-N-12DG (5029327) is a solenoid-operated, 2-way, piloted, poppet-type hydraulic cartridge valve that is normally open and designed for low leakage in load-holding applications. This valve allows bidirectional flow from port 2 to port 1 when de-energized and blocks flow from port 2 to port 1 when energized, with free reverse flow from port 1 to port 2 after overcoming the solenoid force. It operates within a pressure range of 50 to 150 psi (3.4 to 10.3 bar) and features a continuous-duty rated coil, a hardened seat for long life and low leakage, and optional coil voltages and terminations. The SV10-23K-6T-N-12DG offers an efficient wet-armature construction and cartridges that are voltage interchangeable. Its unitized, molded coil design includes a manual override option and optional waterproof E-Coils rated up to IP69K. The valve's design adheres to industry-common cavity specifications making it versatile for various hydraulic systems. With its robust construction featuring steel with hardened work surfaces and zinc-plated exposed parts, this valve ensures durability in demanding environments. It supports a variety of fluid types including mineral-based or synthetic hydraulic fluids with lubricating properties, accommodating fluid viscosities ranging from 7.4 to 420 cSt. The maximum operating contamination level is set at ISO 4406:2018/14. This product integrates seamlessly into systems requiring reliable load-holding capabilities while maintaining stringent leakage control measures critical in various hydraulic applications. Its design allows for flexibility in installation orientations without restrictions, ensuring ease of use across multiple setups.
The Hydraforce SV10-23K-6T-N-12DG (5029327) is a solenoid-operated, 2-way, piloted, poppet-type hydraulic cartridge valve that is normally open and designed for low leakage in load-holding applications. This valve allows bidirectional flow from port 2 to port 1 when de-energized and blocks flow from port 2 to port 1 when energized, with free reverse flow from port 1 to port 2 after overcoming the solenoid force. It operates within a pressure range of 50 to 150 psi (3.4 to 10.3 bar) and features a continuous-duty rated coil, a hardened seat for long life and low leakage, and optional coil voltages and terminations. The SV10-23K-6T-N-12DG offers an efficient wet-armature construction and cartridges that are voltage interchangeable. Its unitized, molded coil design includes a manual override option and optional waterproof E-Coils rated up to IP69K. The valve's design adheres to industry-common cavity specifications making it versatile for various hydraulic systems. With its robust construction featuring steel with hardened work surfaces and zinc-plated exposed parts, this valve ensures durability in demanding environments. It supports a variety of fluid types including mineral-based or synthetic hydraulic fluids with lubricating properties, accommodating fluid viscosities ranging from 7.4 to 420 cSt. The maximum operating contamination level is set at ISO 4406:2018/14. This product integrates seamlessly into systems requiring reliable load-holding capabilities while maintaining stringent leakage control measures critical in various hydraulic applications. Its design allows for flexibility in installation orientations without restrictions, ensuring ease of use across multiple setups.
Unit weight:
0.16 kg (0.35 lb)
Cartridge only
0.46 kg (1.02 lb)
Cartridge with e-coil
Internal wetted surface area:
210 cm² (32.5 in²)
Materials:
steel with hardened work surfaces zinc-plated exposed
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 344 bar (5000 psi) Burst pressure: 779 bar (11300 psi) Flow Ratings Flow rating: See performance graph Maximum internal leakage: 3 drops/min At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |

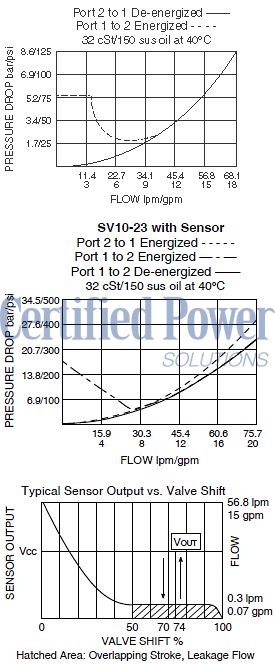

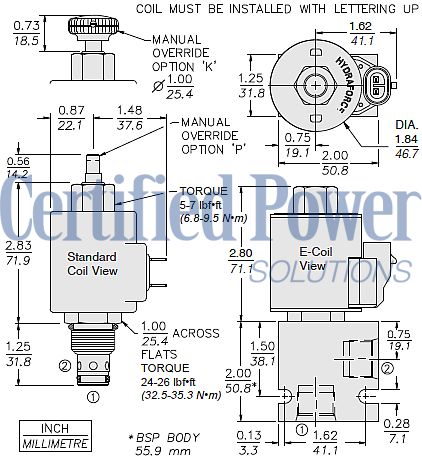

| Performance |  |
| Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Maximum allowable torque: 68 N-m (50 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-A23AEG-H-J-L-M A Position Sensor Option A 23 Standard A P23A Position Indicator Switch with Resticted Flow E Manual Override E BLANK NONE E K Momentary Push Override, Knob E P Momentary Push Override, Button G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO |
Seal kit:
SK10-2X-T
(x = seal option)
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
