- Material:5029312
- Model:SV12-20M-16T-N-115AP SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE POPPET, 2 WAY, NORMALLY CLOSED
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

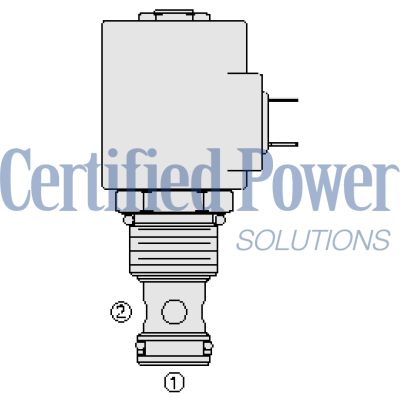

The Hydraforce 5029312 (5029312) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve. This device is primarily designed to function as a load-holding or blocking valve in various applications where low internal leakage is critical. The operation of the valve is straightforward: when de-energized, the SV1220X model acts as a check valve, permitting flow from port 1 to port 2 while blocking flow in the reverse direction. Upon energization, the poppet lifts, altering the flow path from port 2 to port 1 and significantly restricting flow from 1 to 2. This model is distinguished by its continuous-duty rated coil and hardened seat which ensure long life and minimal leakage. It features efficient wet-armature construction and cartridges that are voltage interchangeable. The unitized, molded coil design enhances durability and performance consistency. For customization according to specific application needs, optional coil voltages and terminations are available. Additionally, it offers a manual override option and can be equipped with optional waterproof E-Coils that are rated up to IP69K for enhanced protection against environmental conditions. This makes the Hydraforce 5029312 an adaptable solution for various hydraulic systems requiring reliable load holding or blocking capabilities with an emphasis on maintaining tight control over internal leakage.
The Hydraforce 5029312 (5029312) is a solenoid-operated, 2-way, normally closed, poppet-type, screw-in hydraulic cartridge valve. This device is primarily designed to function as a load-holding or blocking valve in various applications where low internal leakage is critical. The operation of the valve is straightforward: when de-energized, the SV1220X model acts as a check valve, permitting flow from port 1 to port 2 while blocking flow in the reverse direction. Upon energization, the poppet lifts, altering the flow path from port 2 to port 1 and significantly restricting flow from 1 to 2. This model is distinguished by its continuous-duty rated coil and hardened seat which ensure long life and minimal leakage. It features efficient wet-armature construction and cartridges that are voltage interchangeable. The unitized, molded coil design enhances durability and performance consistency. For customization according to specific application needs, optional coil voltages and terminations are available. Additionally, it offers a manual override option and can be equipped with optional waterproof E-Coils that are rated up to IP69K for enhanced protection against environmental conditions. This makes the Hydraforce 5029312 an adaptable solution for various hydraulic systems requiring reliable load holding or blocking capabilities with an emphasis on maintaining tight control over internal leakage.
Unit weight:
0.25 kg (0.54 lb)
Blank
0.26 kg (0.57 lb)
M j y
0.67 kg (1.48 lb)
Including coil
Internal wetted surface area:
155 cm² (24.0 in²)
Blank
166 cm² (25.7 in²)
M j y
| Ratings | Pressure Ratings Pressure rating: 240 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: See performance chart Maximum internal leakage: 3 drops/min Max at 240 bar (3500 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 90 °C (-40 to 194 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (gsv12-20x) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC12-2 12-size-2-way Cavities Cartridge installation torque: 44.8 to 50.2 N-m (33 to 37 ft-lb) Maximum allowable torque: 102 N-m (75 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV12-A20AE-H-J-L-M A Position Sensor Option A 20 Standard A P20A Position Indicator Switch with Resticted Flow E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 10T Aluminum SAE 10 H 12T Aluminum SAE 12 H 16T Aluminum SAE 16 H 12TD Ductile Iron SAE 12 H 16TD Ductile Iron SAE 16 H 8B Aluminum BSPP 1" (8) H 8BD Ductile Iron BSPP 1" (8) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO |
Seal kit:
SK12-2X-T
X = seal option
Seal kit installation instructions
Housings:
Available
12-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
