- Material:5029138
- Model:SV10-31M-6T-N-12DL SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE SPOOL, 3 WAY
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

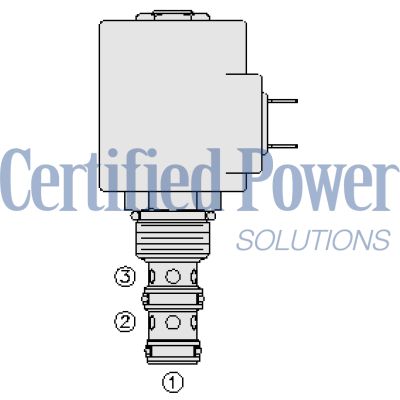

The Hydraforce 5029138 (5029138) is a solenoid-operated, 3-port, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in diverse hydraulic systems. This model features a continuous-duty rated coil that ensures reliable operation under extended working periods. The hardened precision spool and cage enhance the valve's durability and lifespan, making it suitable for applications requiring frequent or prolonged use. The 5029138 offers optional coil voltages and terminations, providing flexibility to accommodate different electrical requirements. Its efficient wet-armature construction contributes to its effective performance in hydraulic tasks. The valve's cartridges are voltage interchangeable which simplifies maintenance and replacement processes. All ports of the valve can withstand full pressurization, enhancing its versatility in various hydraulic circuits. The unitized, molded coil design of the 5029138 improves its resilience and reliability in demanding environments. Additionally, it includes a manual override option which allows for manual operation in case of an electrical power failure or when adjustments are needed during setup and testing. For environments requiring rigorous standards, optional waterproof E-Coils are available that are rated up to IP69K, ensuring protection against ingress of dust and high temperature high-pressure water jets. This feature makes the 5029138 particularly suitable for outdoor or harsh environmental conditions where moisture or particulate matter is a concern. Lastly, its compatibility with industry-common cavity allows for easy integration into existing systems without the need for extensive modifications or custom parts.
The Hydraforce 5029138 (5029138) is a solenoid-operated, 3-port, direct-acting, spool-type, screw-in hydraulic cartridge valve designed for robust performance in diverse hydraulic systems. This model features a continuous-duty rated coil that ensures reliable operation under extended working periods. The hardened precision spool and cage enhance the valve's durability and lifespan, making it suitable for applications requiring frequent or prolonged use. The 5029138 offers optional coil voltages and terminations, providing flexibility to accommodate different electrical requirements. Its efficient wet-armature construction contributes to its effective performance in hydraulic tasks. The valve's cartridges are voltage interchangeable which simplifies maintenance and replacement processes. All ports of the valve can withstand full pressurization, enhancing its versatility in various hydraulic circuits. The unitized, molded coil design of the 5029138 improves its resilience and reliability in demanding environments. Additionally, it includes a manual override option which allows for manual operation in case of an electrical power failure or when adjustments are needed during setup and testing. For environments requiring rigorous standards, optional waterproof E-Coils are available that are rated up to IP69K, ensuring protection against ingress of dust and high temperature high-pressure water jets. This feature makes the 5029138 particularly suitable for outdoor or harsh environmental conditions where moisture or particulate matter is a concern. Lastly, its compatibility with industry-common cavity allows for easy integration into existing systems without the need for extensive modifications or custom parts.
Unit weight:
0.18 kg (0.39 lb)
Internal wetted surface area:
158 cm² (24.5 in²)
| Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 827 bar (12000 psi) Flow Ratings Flow rating: 22.7 lpm (6 gpm) Maximum internal leakage: 164 ml/min (10 in³/min ) At from port 3 to 2 (valve energized); 207 bar (3000 psi) 82 ml/min (5 in³/min ) At from port 3 to 2 (valve de-energized) 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-3 10-size-3-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-A31E-H-J-L-M A Position Sensor Option A 31 Standard A P31 Position Indicator Switch E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO |
Seal kit:
SK10-3X-MM
X = seal option
Seal kit installation instructions
Housings:
Available
10-3w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
