HYDRAFORCE
5029079


$111.75 USD
  • HYDRAFORCE
  • Material:5029079
  • Model:SV10-25M-0-N-115AP W/ 7004596 NUT
  • Summary:SOLENOID CARTRIDGE VALVE SPOOL, 2 PORT, NORMALLY OPEN

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

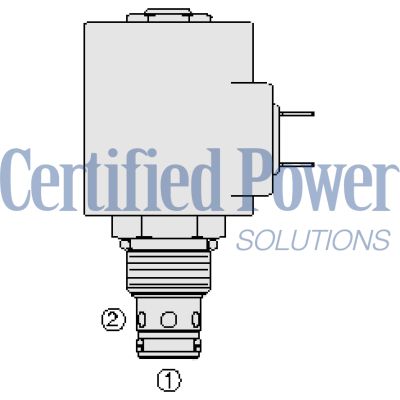

The Hydraforce 5029079 (5029079) is a solenoid-operated, 2-port, normally open, direct-acting, spool-type screw-in hydraulic cartridge valve. This valve is specifically designed to function as a bidirectional blocking valve. In its default state when de-energized, the SV1025 model allows hydraulic flow in both directions, making it versatile for various applications. Upon energization, the cartridge's spool shifts to close off the bidirectional flow path effectively. Key features of this model include a continuous-duty rated coil and a hardened precision spool and cage which ensure durability and an extended operational life. The valve is engineered with efficient wet-armature construction and a unitized, molded coil design that enhances its reliability and performance under demanding conditions. Both ports of the valve can be fully pressurized, adding to its robustness in high-pressure scenarios. Additionally, the 5029079 offers optional coil voltages and terminations to accommodate different electrical requirements. For environments requiring rigorous standards, there are optional waterproof E-Coils available that are rated up to IP69K, providing protection against ingress of dust and high-temperature high-pressure water. A manual override option is also available which can be crucial for maintenance or emergency interventions. This model utilizes an industry common cavity which facilitates ease of installation and compatibility with existing systems without the need for extensive modifications or custom parts. The combination of these features makes the Hydraforce 5029079 an efficient choice for controlling fluid flow in hydraulic systems across various applications.

Materials: Steel with hardened work surfaces zinc-plated exposed
surfaces

RatingsPressure Ratings
Pressure rating: 207 bar (3000 psi)

Flow Ratings
Flow rating: 22.7 lpm (6 gpm)

Maximum internal leakage: 5 in³/min
Max at 207 bar (3000 psi)

Temperature Ratings
Storage temperature: -40 to 120 °C (-40 to 250 °F)
Buna-n
Performancehttps://www.hydraforce.com/globalassets/product-images/sv10-25_perf_chrt2022-02-24.gif

Installation SpecificationsCavity:
10-size-2-way Cavities
Order CodePOSITION CODE DESCRIPTION SV10-A25EG-H-J-L-M A Position Sensor Option A 25 Standard A P25A Position Indicator Switch with Resticted Flow E Manual Override E BLANK NONE E J Momentary Pull Override, #10-32 threads E M Two Position Override, Red Knurled Knob E Y Momentary Pull Override, Red Knurled Knob G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires M Position Sensor Termination M BLANK No Position Sensor M M3 Neutral Sense, M12-4P, Dual Output NC/NO M N3 Neutral Sense, DT04-4P, Dual Output NC/NO
https://www.hydraforce.com/globalassets/product-images/sv10-20_dim_dwg2022-02-24.gif


Seal kit:
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
