HYDRAFORCE
5029015
$64.25 USD
- HYDRAFORCE
- Material:5029015
- Model:SV10-21P-0-N-00 W/ 7004426 NUT
- Summary:SOLENOID CARTRIDGE VALVE POPPET, 2 WAY, NORMALLY OPEN
Quantity in stock: 0
The Hydraforce SV10-21P-0-N-00 (5029015) is a solenoid-operated, 2-way, piloted, poppet-type hydraulic cartridge valve that is normally open and designed for low leakage in load-holding applications. This valve allows flow from port 2 to port 1 when de-energized and restricts flow from port 1 to port 2. Upon energization, the valve's poppet closes against its seat, blocking flow from port 2 to port 1 while permitting flow in the reverse direction after overcoming a solenoid force of 50 to 150 psi (3.4 to 10.3 bar). It features a continuous-duty rated coil and a hardened seat for durability and minimal leakage. Additionally, the SV10-21P-0-N-00 offers optional coil voltages and terminations, efficient wet-armature construction, voltage interchangeable cartridges, and a unitized molded coil design. A manual override option enhances usability in various operational settings. For environments requiring robust performance, optional waterproof E-Coils are available that are rated up to IP69K. The valve operates effectively within a fluid temperature range of -40°C to +100°C with Buna N seals and can handle pressures up to 207 bar (3000 psi), with proof pressure at 344 bar (5000 psi) and burst pressure reaching up to 779 bar (11300 psi). It supports maximum flow rates up to 102 lpm (27 gpm) based on conditions set at 34.4 bar (500 psi). The unit's weight is approximately 0.16 kg for the cartridge alone or about 0.46 kg when equipped with an E-coil. This product is versatile with no orientation restrictions in installation, ensuring ease of use across various applications without specific setup constraints.
Unit weight:
0.16 kg (0.35 lb)
Cartridge only
0.46 kg (1.02 lb)
Cartridge with e-coil
Internal wetted surface area:
210 cm² (32.5 in²)
Materials:
continuous from 85% to 115% of nominal voltage
Ratings | Pressure Ratings Pressure rating: 207 bar (3000 psi) Proof pressure: 344 bar (5000 psi) Burst pressure: 779 bar (11300 psi) (sv10-20) Flow Ratings Flow rating: 102 lpm (27 gpm) Based on 34.4 bar (500 psi) See performance graph Maximum internal leakage: 3 drops/min At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |

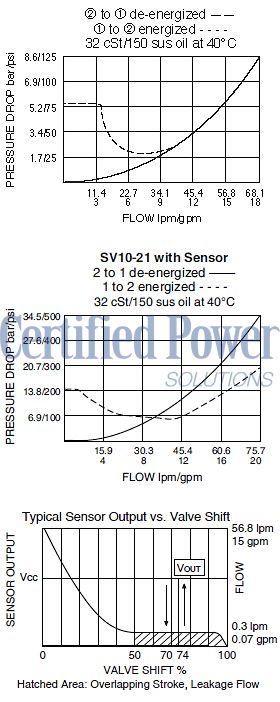

Performance | |
Installation Specifications | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
Order Code | POSITION CODE DESCRIPTION SV10-21EG-H-J-L E Manual Override E BLANK NONE E HP Momentary Push Override, Button with Protective Nut E K Momentary Push Override, Knob E P Momentary Push Override, Button G Screen G BLANK NONE G S 100 Mesh Screen H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK10-2X-T
(x = seal option)
Seal kit installation instructions
Housings:
Available
10-2w valve bodies
Coils:
10 size D
coils
10 size E
coils
Product ZIP File | Download Product ZIP File |
Product PDF File | Download Product PDF File |
