- Material:5028279
- Model:SV10-47B-0-N-24DS SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE 3 POSITION, 4 PORT OPEN CENTER
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5028279 (5028279) is a solenoid-operated, 4-port, 3-position, direct acting spool type screw-in hydraulic cartridge valve meticulously designed for robust hydraulic system applications. This valve features a unique configuration where all ports are interconnected when de-energized, enhancing its versatility in circuit integration. Upon activation of coil 1, the valve permits flow from port 3 to port 4 and from port 2 to port 1. Conversely, energizing coil 2 changes the flow direction from port 3 to port 2 and from port 4 to port 1, thus facilitating various operational states for comprehensive hydraulic control. Crafted with a continuous-duty rated solenoid and hardened precision spool and cage, the SV1047BX ensures durability and optimal performance over an extended service life. It is engineered with efficiency in mind, featuring wet-armature construction and a unitized molded coil design that contribute to its reliability in demanding environments. The valve is also designed with flexibility for different needs; it offers optional coil voltages and terminations along with a manual override option which provides additional control by requiring more effort to completely shift the spool. For enhanced environmental resistance, optional waterproof E-Coils are available which are rated up to IP69K, making this valve suitable for use in conditions where moisture or dust ingress is a concern. Furthermore, its industry common cavity allows for easy installation across various platforms without specific customization requirements. All ports on this device can withstand full pressurization, adding to its robustness and utility in complex hydraulic systems where precise fluid control is critical.
The Hydraforce 5028279 (5028279) is a solenoid-operated, 4-port, 3-position, direct acting spool type screw-in hydraulic cartridge valve meticulously designed for robust hydraulic system applications. This valve features a unique configuration where all ports are interconnected when de-energized, enhancing its versatility in circuit integration. Upon activation of coil 1, the valve permits flow from port 3 to port 4 and from port 2 to port 1. Conversely, energizing coil 2 changes the flow direction from port 3 to port 2 and from port 4 to port 1, thus facilitating various operational states for comprehensive hydraulic control. Crafted with a continuous-duty rated solenoid and hardened precision spool and cage, the SV1047BX ensures durability and optimal performance over an extended service life. It is engineered with efficiency in mind, featuring wet-armature construction and a unitized molded coil design that contribute to its reliability in demanding environments. The valve is also designed with flexibility for different needs; it offers optional coil voltages and terminations along with a manual override option which provides additional control by requiring more effort to completely shift the spool. For enhanced environmental resistance, optional waterproof E-Coils are available which are rated up to IP69K, making this valve suitable for use in conditions where moisture or dust ingress is a concern. Furthermore, its industry common cavity allows for easy installation across various platforms without specific customization requirements. All ports on this device can withstand full pressurization, adding to its robustness and utility in complex hydraulic systems where precise fluid control is critical.
Unit weight:
0.25 kg (0.56 lb)
Internal wetted surface area:
242 cm² (37.5 in²)

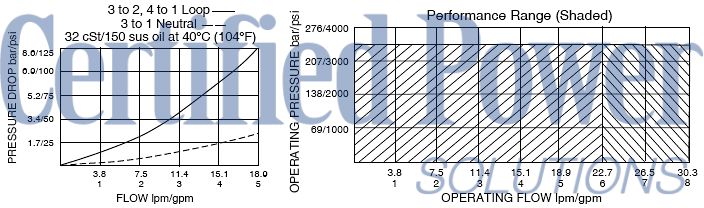

| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 344 bar (5000 psi) Burst pressure: 779 bar (11.300 psi) Flow Ratings Flow rating: See "performance range" Maximum internal leakage: 328 ml/min (20 in³/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:

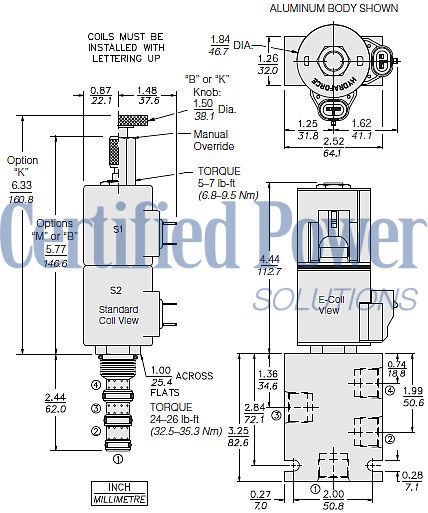

VC10-4 10-size-4-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-47BE-H-J-L E Manual Override E B Momentary Push/Pull Override, 1.5" Diameter Aluminum Knob E BLANK NONE E K Three Position Override, 1.5" Diameter Aluminum Knob E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK10-4X-MMM
X = seal option
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
Coils:
10 size D
coils
10 size E
coils
| Product ZIP File | Download Product ZIP File |
| Product PDF File | Download Product PDF File |
