HYDRAFORCE
5028238


$239.50 USD
  • HYDRAFORCE
  • Material:5028238
  • Model:SV10-47A-8T-N-24AP SOLENOID VALVE
  • Summary:SOLENOID CARTRIDGE VALVE 3 POSITION, 4 PORT TANDEM CENTER

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

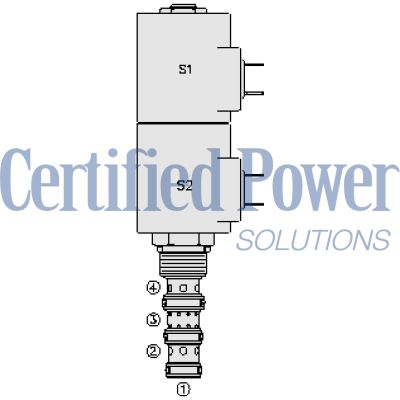

The Hydraforce 5028238 (5028238) is a high-performance hydraulic cartridge valve designed for robust and efficient control in hydraulic systems. This solenoid-operated, 4-port, 3-position, direct acting spool type screw-in valve offers precise control over fluid flow in various hydraulic applications. The SV1047AX model operates by blocking cylinder ports when de-energized, allowing flow from port 3 to port 1. Energizing coil 1 shifts the flow from port 3 to port 2 and from port 4 to port 1. Conversely, energizing coil 2 directs the flow from port 3 to port 4 and from port 2 to port 1. This valve is particularly suitable for applications where work port flows are unequal due to cylinder ratios; it is recommended that the higher return flow be directed to port 2 for optimal performance. The Hydraforce SV1047AX features a continuous-duty rated solenoid and a hardened precision spool and cage which ensure long-lasting durability and reliability under continuous operation. It also offers optional coil voltages and terminations, along with a manual override option which enhances its flexibility across different system configurations. Moreover, the unit boasts an efficient wet-armature construction and optional waterproof E-Coils that are rated up to IP69K, making it suitable for use in environments where moisture or dust ingress is a concern. All ports on this cartridge can be fully pressurized, providing versatile integration into various hydraulic circuits. Its industry common cavity design allows for easy replacement or integration into existing systems without extensive modifications.

Unit weight: 0.28 kg (0.61 lb)

Internal wetted surface area: 245 cm² (38.0 in²)

RatingsPressure Ratings
Pressure rating: 250 bar (3625 psi)

Proof pressure: 344 bar (5000 psi)

Burst pressure: 779 bar (11.300 psi)

Flow Ratings
Flow rating: See "performance range"

Maximum internal leakage: 328 ml/min (20 in³/min)
At 207 bar (3000 psi)

Temperature Ratings
Operating fluid temperature: -40 to 100 °C (-40 to 212 °F)
With buna N seals
-26 to 204 °C (-15 to 400 °F)
With fluorocarbon seals
-54 to 107 °C (-65 to 225 °F)
With polyurethane seals

Storage temperature: -40 to 70 °C (-40 to 160 °F)

Ambient temperature: -40 to 70 °C (-40 to 160 °F)
Operating ParametersFluids: Mineral based or synthetic hydraulic fluid with lubricating
properties

Fluid viscosity range: 7.4 to 420 cSt

Maximum operating contamination level: 20/18/14 per ISO 4406
Performancehttps://www.hydraforce.com/globalassets/product-images/sv10-47a_perf_chrt2022-02-24.gif

Installation SpecificationsCavity: VC10-4
10-size-4-way Cavities
Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb)

Maximum allowable torque: 67.8 N-m (50 ft-lb)

Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb)

Orientation restriction: None
Order CodePOSITION CODE DESCRIPTION SV10-47AE-H-J-L E Manual Override E B Momentary Push/Pull Override, 1.5" Diameter Aluminum Knob E BLANK NONE E K Three Position Override, 1.5" Diameter Aluminum Knob E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires
https://www.hydraforce.com/globalassets/product-images/sv10-47a_dim_dwg2022-02-24.gif


Seal kit: SK10-4X-MMM
X = seal option
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
Coils:
10 size D
coils
10 size E
coils
