HYDRAFORCE
5028224
$204.00 USD
- HYDRAFORCE
- Material:5028224
- Model:SV10-47A-6T-N-12DG SOLENOID VALVE
- Summary:SOLENOID CARTRIDGE VALVE 3 POSITION, 4 PORT TANDEM CENTER
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

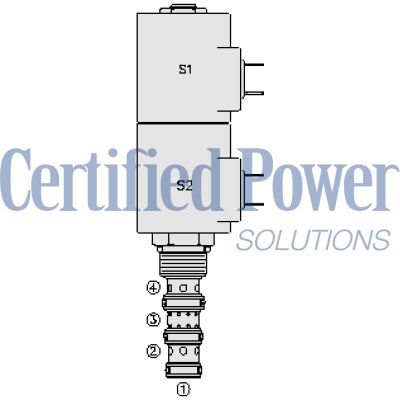

The Hydraforce 5028224 (5028224) is a solenoid-operated, 4-port, 3-position, direct-acting spool-type screw-in hydraulic cartridge valve designed for versatile hydraulic flow control in a compact unit. This model features a hardened precision spool and cage which ensures long life and reliability under continuous duty operations. The SV1047AX configuration of the valve allows for selective flow direction based on the energization of its coils. Specifically, when de-energized, it blocks cylinder ports while enabling flow from port 3 to port 1. Energizing coil 1 changes the flow direction from port 3 to port 2 and from port 4 to port 1, whereas energizing coil 2 shifts the flow from port 3 to port 4 and from port 2 to port 1. This valve is particularly useful in applications where work port flows are unequal due to cylinder ratios, recommending that higher return flows be directed to port 2 for optimal performance. Additionally, it offers flexibility in installation and operation through options such as manual overrides and various coil voltages and terminations. The optional waterproof E-Coils are rated up to IP69K, making them suitable for environments requiring stringent protection against dust and moisture ingress. Moreover, the efficient wet-armature construction of the Hydraforce 5028224 enhances its operational efficiency. All ports on this valve can be fully pressurized without risk of damage or performance loss. Its cartridges are voltage interchangeable which allows for easier maintenance and replacement processes. The unitized, molded coil design contributes to its robustness and industry common cavity ensures compatibility with standard configurations in hydraulic systems.
The Hydraforce 5028224 (5028224) is a solenoid-operated, 4-port, 3-position, direct-acting spool-type screw-in hydraulic cartridge valve designed for versatile hydraulic flow control in a compact unit. This model features a hardened precision spool and cage which ensures long life and reliability under continuous duty operations. The SV1047AX configuration of the valve allows for selective flow direction based on the energization of its coils. Specifically, when de-energized, it blocks cylinder ports while enabling flow from port 3 to port 1. Energizing coil 1 changes the flow direction from port 3 to port 2 and from port 4 to port 1, whereas energizing coil 2 shifts the flow from port 3 to port 4 and from port 2 to port 1. This valve is particularly useful in applications where work port flows are unequal due to cylinder ratios, recommending that higher return flows be directed to port 2 for optimal performance. Additionally, it offers flexibility in installation and operation through options such as manual overrides and various coil voltages and terminations. The optional waterproof E-Coils are rated up to IP69K, making them suitable for environments requiring stringent protection against dust and moisture ingress. Moreover, the efficient wet-armature construction of the Hydraforce 5028224 enhances its operational efficiency. All ports on this valve can be fully pressurized without risk of damage or performance loss. Its cartridges are voltage interchangeable which allows for easier maintenance and replacement processes. The unitized, molded coil design contributes to its robustness and industry common cavity ensures compatibility with standard configurations in hydraulic systems.
Unit weight:
0.28 kg (0.61 lb)
Internal wetted surface area:
245 cm² (38.0 in²)
| Ratings | Pressure Ratings Pressure rating: 250 bar (3625 psi) Proof pressure: 344 bar (5000 psi) Burst pressure: 779 bar (11.300 psi) Flow Ratings Flow rating: See "performance range" Maximum internal leakage: 328 ml/min (20 in³/min) At 207 bar (3000 psi) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) |
| Operating Parameters | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 20/18/14 per ISO 4406 |
| Performance |  |
| Installation Specifications | Cavity:
VC10-4 10-size-4-way Cavities Cartridge installation torque: 32.5 to 35.3 N-m (24 to 26 ft-lb) Maximum allowable torque: 67.8 N-m (50 ft-lb) Coil nut torque: 6.8 to 9.5 N-m (5 to 7 ft-lb) Orientation restriction: None |
| Order Code | POSITION CODE DESCRIPTION SV10-47AE-H-J-L E Manual Override E B Momentary Push/Pull Override, 1.5" Diameter Aluminum Knob E BLANK NONE E K Three Position Override, 1.5" Diameter Aluminum Knob E M Momentary Push/Pull Override, Red Knurled Knob H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane L Coil L 0 No Coil, D-Coil Spacer L 0E No Coil, E-Coil Spacer L 10DG 10 VDC, D-Coil, DIN 43650 L 10DL 10 VDC, D-Coil, Dual Lead Wires L 10DR/D 10 VDC, D-Coil, Deutsch with Diode L 10DS 10 VDC, D-Coil, Dual Spade L 10EL 10 VDC, E-Coil, Dual Lead Wires L 10ER 10 VDC, E-Coil, Deutsch L 10ER/Z 10 VDC, E-Coil, Deutsch with Zener Diode L 12DG 12 VDC, D-Coil, DIN 43650 L 12DL 12 VDC, D-Coil, Dual Lead Wires, 18 inches long L 12DL/36 12 VDC, D-Coil, Dual Lead Wires, 36 inches long L 12DL/W 12 VDC, D-Coil, Dual Lead Wires with Weatherpak L 12DL/W/D 12 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 12DR 12 VDC, D-Coil, Deutsch L 12DR/D 12 VDC, D-Coil, Deutsch with Diode L 12DR/Z 12 VDC, D-Coil, Deutsch with Zener Diode L 12DS 12 VDC, D-Coil, Dual Spade L 12EG 12 VDC, E-Coil, DIN 43650 L 12EJ 12 VDC, E-Coil, AMP Jr. L 12EL 12 VDC, E-Coil, Dual Lead Wires, 18 inches long L 12EL/36 12 VDC, E-Coil, Dual Lead Wires, 36 inches long L 12EL/W/Z 12 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 12EL/Z 12 VDC, E-Coil, Dual Lead Wires with Zener Diode L 12ER 12 VDC, E-Coil, Deutsch L 12ER/Z 12 VDC, E-Coil, Deutsch with Zener Diode L 12EY 12 VDC, E-Coil, Metri-Pack 150 L 12EY/Z 12 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 20DR/D 20 VDC, D-Coil, Deutsch with Diode L 20DS 20 VDC, D-Coil, Dual Spade L 20ER 20 VDC, E-Coil, Deutsch L 24AG 24 VDC, D-Coil, DIN 43650 L 24AP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DG 24 VDC, D-Coil, DIN 43650 L 24DL 24 VDC, D-Coil, Dual Lead Wires L 24DL/W 24 VDC, D-Coil, Dual Lead Wires with Weatherpak L 24DL/W/D 24 VDC, D-Coil, Dual Lead Wires with Weatherpak with Diode L 24DP 24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires L 24DR 24 VDC, D-Coil, Deutsch L 24DR/D 24 VDC, D-Coil, Deutsch with Diode L 24DS 24 VDC, D-Coil, Dual Spade L 24EG 24 VDC, E-Coil, DIN 43650 L 24EJ 24 VDC, E-Coil, AMP Jr. L 24EL 24 VDC, E-Coil, Dual Lead Wires, 18 inches long L 24EL/36 24 VDC, E-Coil, Dual Lead Wires, 36 inches long L 24EL/W/Z 24 VDC, E-Coil, Dual Lead Wires with WeatherPak and Zener Diode L 24ER 24 VDC, E-Coil, Deutsch L 24ER/Z 24 VDC, E-Coil, Deutsch with Zener Diode L 24EY 24 VDC, E-Coil, Metri-Pack 150 L 24EY/Z 24 VDC, E-Coil, Metri-Pack 150 with Zener Diode L 36DS 36 VDC, D-Coil, Dual Spade L 115AG 115 VAC, D-Coil, DIN 43650 L 115AP 115 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires L 230AG 230 VAC, D-Coil, DIN 43650 L 230AP 230 VAC, D-Coil, 1/2" Conduit and Dual Lead Wires |
Seal kit:
SK10-4X-MMM
X = seal option
Seal kit installation instructions
Housings:
Available
10-4w valve bodies
Coils:
10 size D
coils
10 size E
coils
